UbiSmart AQM+ Streetlight
Air Quality and Noise Monitor
Easily integrates into your existing streetlight infrastructure to add near real-time multi-factor environmental monitoring to your community

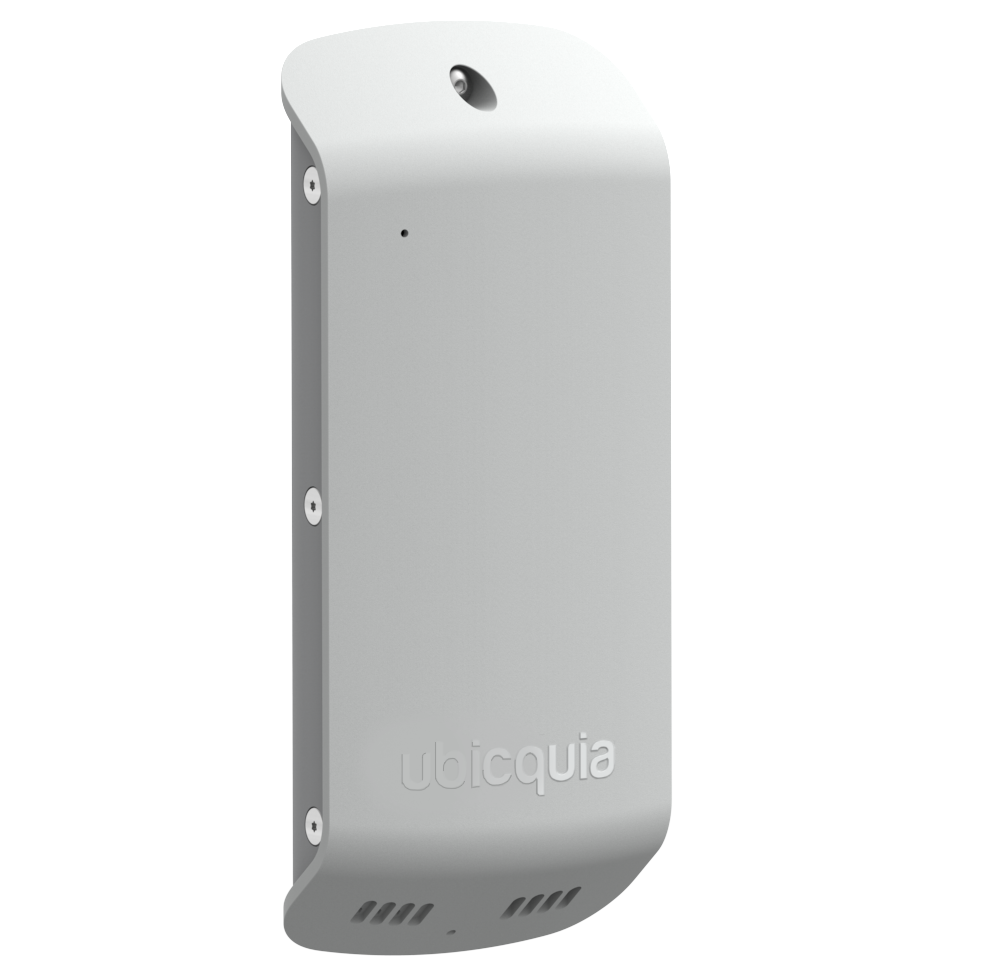

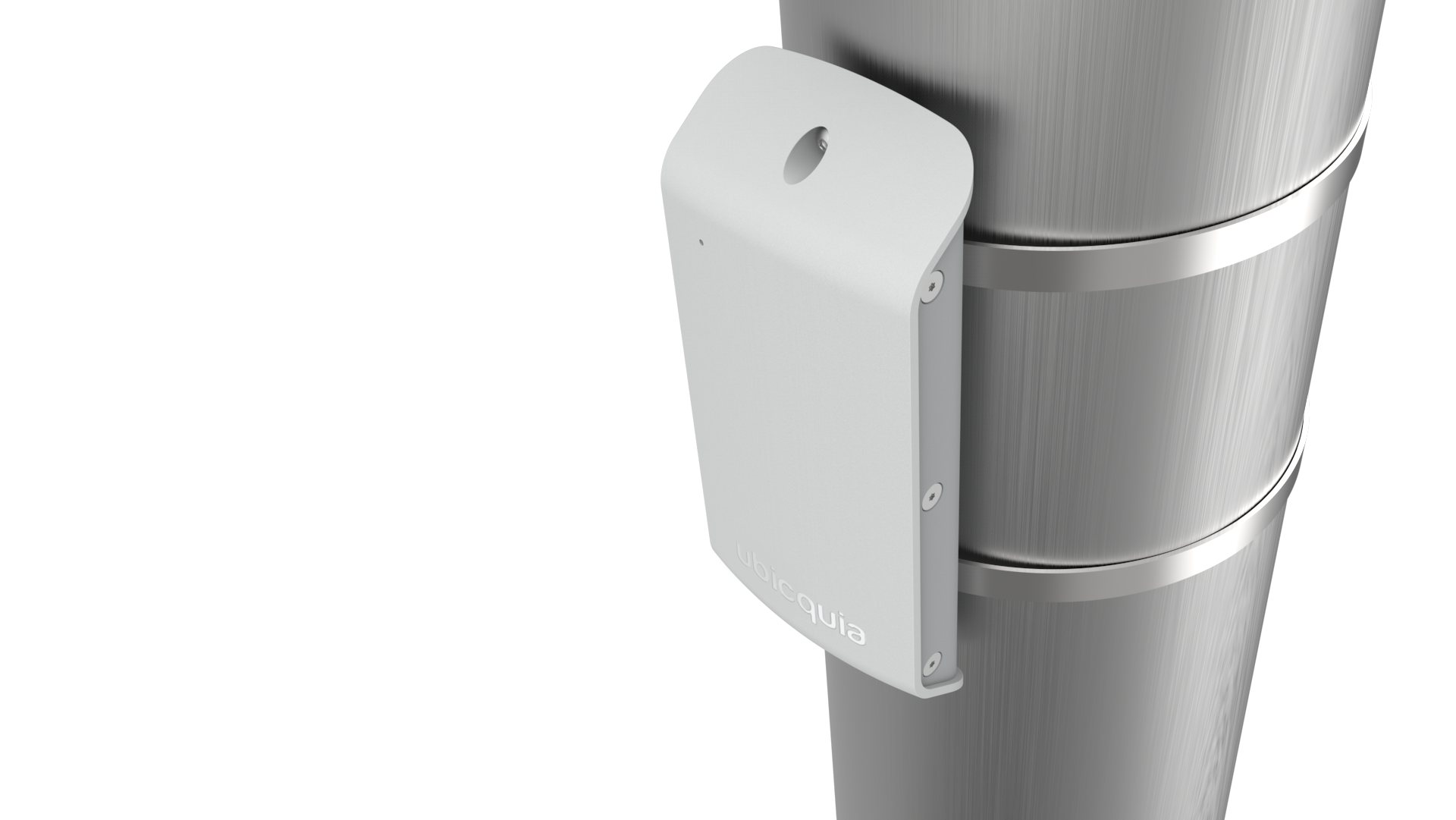

UbiSmart AQM+ air quality and noise monitor sensor designed for integration with existing utility infrastructure and Ubicquia’s advanced streetlight controller platform. Measure and analyze data to track different environmental trends in your town.
Simply Connected.
Easily Installed.

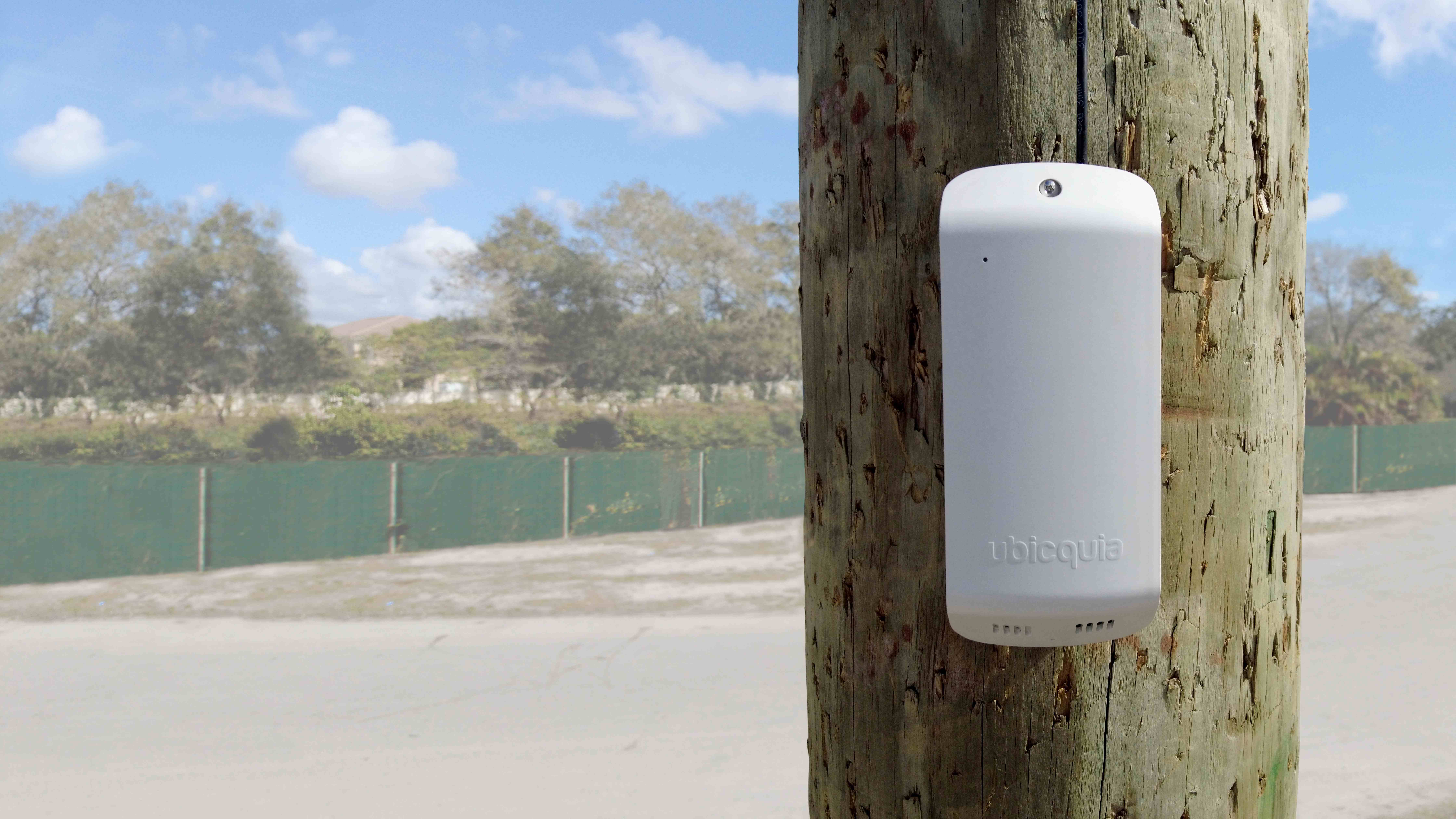

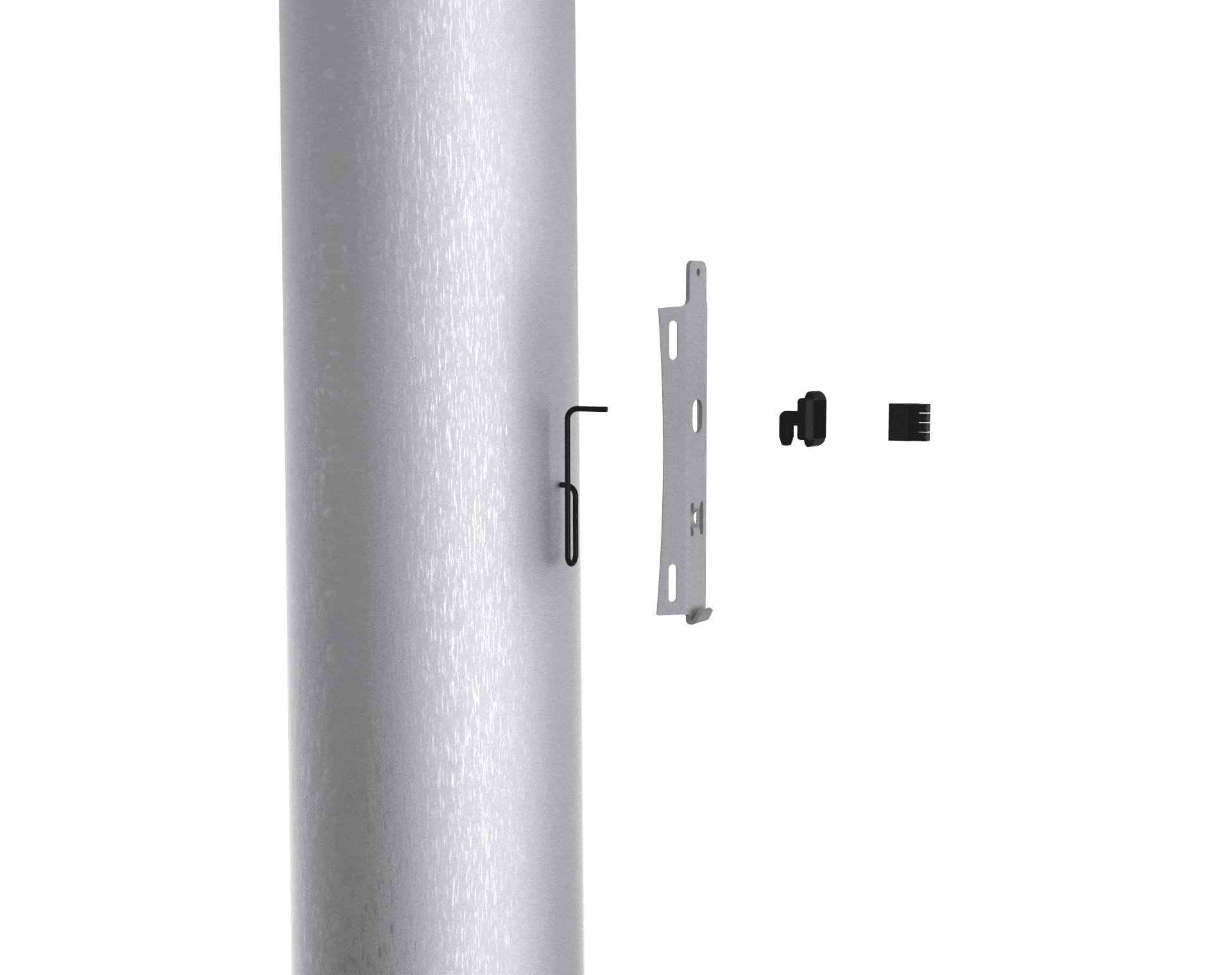

UbiSmart Air Quality Monitoring+ installs typically in under 15 minutes and seamlessly integrates into your existing streetlight infrastructure with our easy slide, snap, and lock mounting bracket.
Get actionable insights to make data driven decisions

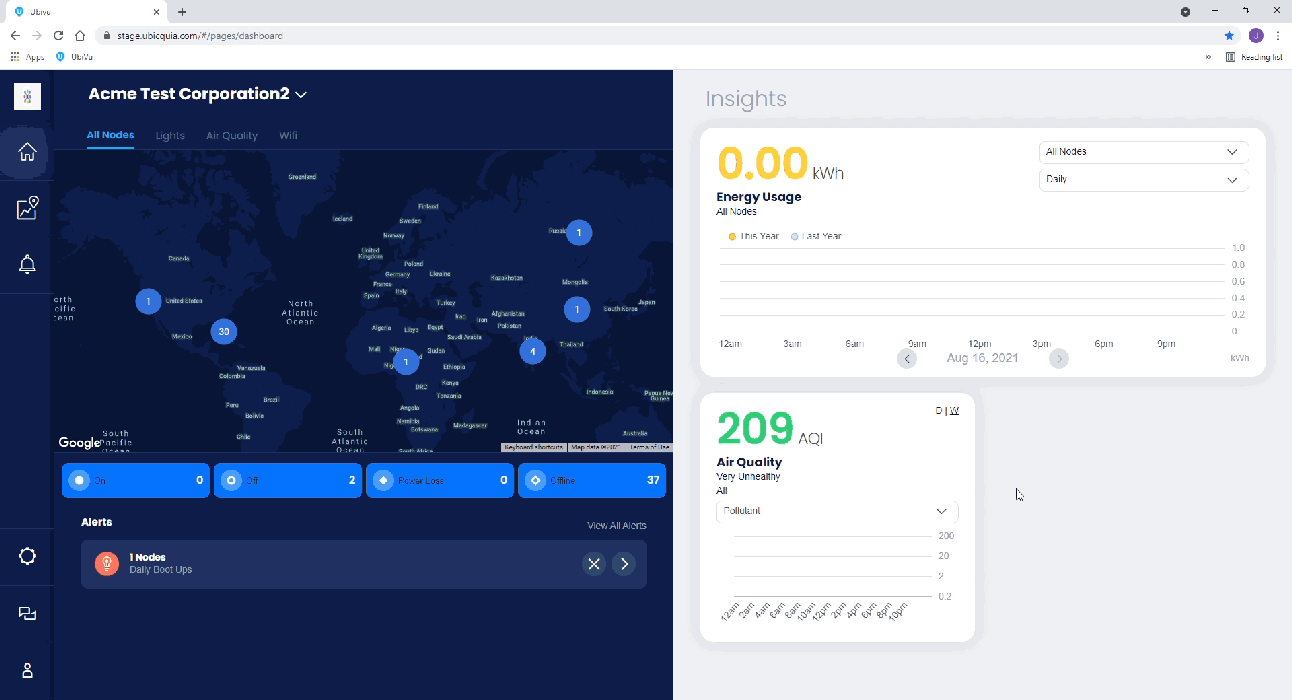

UbiSmart Air Quality Monitor+ integrates with our UbiCell streetlight controller to monitor EPA Air Quality Index along with environmental data and noise levels. Integrated DALI-2 powerand data; data access in our UbiVu App or the API with user-defined customizable alerts and thresholds also allow for quick and simple sharing of data with third-parties.
Environmental Measurements
- Temperature
- Humidity (RH)
- Pressure (P)
- Noise level (dB)
Air Quality Measurements
- Carbon Monoxide (CO)
- Particulate Matter (PM1, PM2.5, PM10)
- Ozone (O3)
- Sulfur Dioxide (SO2)
- Nitrogen Dioxide (NO2)
Operations & Maintenance
- Real-time Air Quality Index
- Evaluates data on short & long-term trends
- Broad range coverage per device
- Auto calibration
- Predictive alert system
- Zero cost maintenance
Simplified Installation
- Installs in minutes
- Auto-provisions on power-up
- Auto calibration
- Fits on a wide variety of poles
- Easy to replace

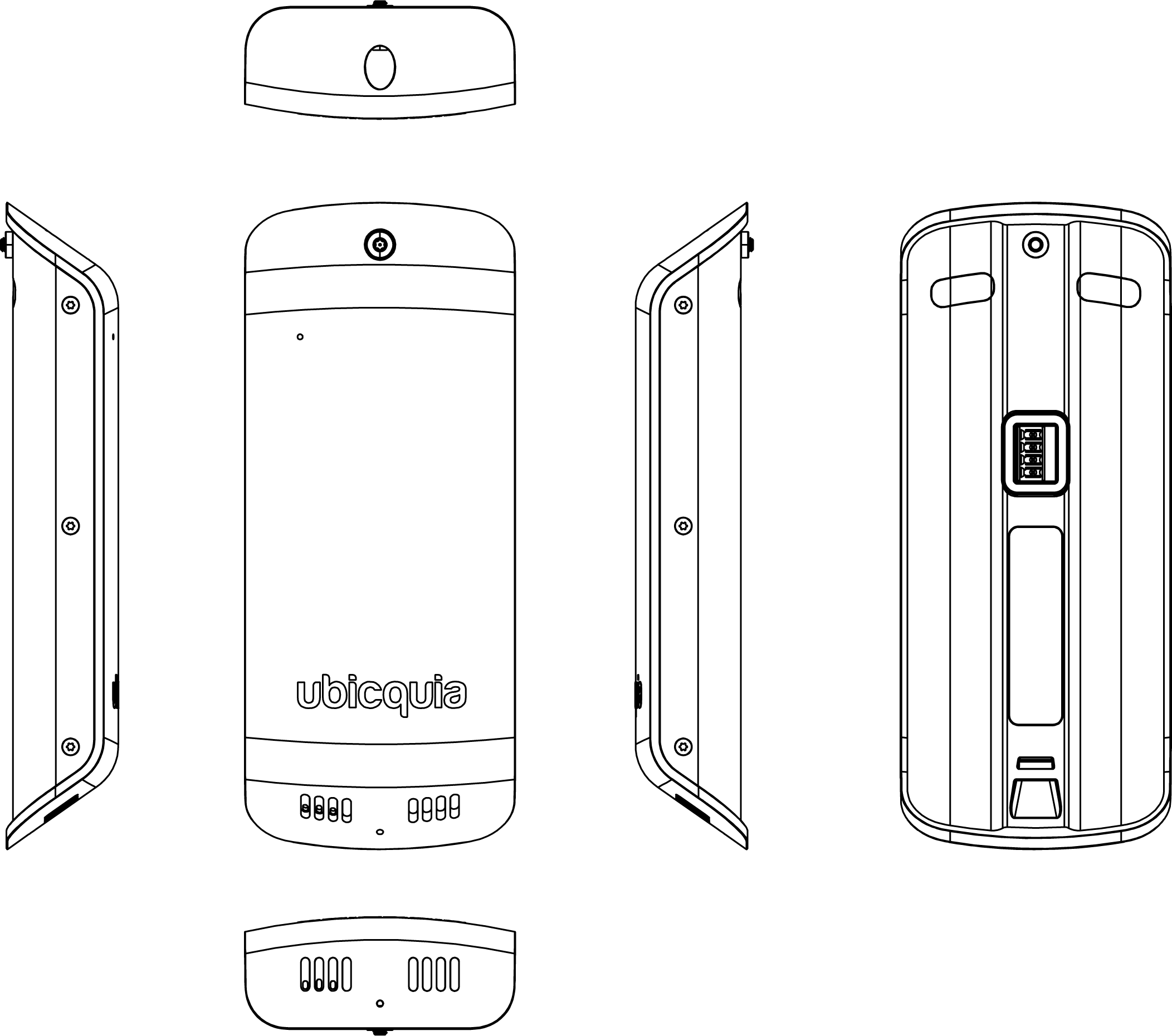

| Dimensions : | 197mm x 82mm x 32mm |
|---|---|
| Interface: | Digital Addressable Lighting Interface (DALI) |
| DALI Power Supply: | 16V 70mA Max |
| External Power Supply: | 5V 200mA Max |
| External Controller: | UbiCell |
| Power Surge Protection: | 10kV/5kA via UbiCel |
| Operating Temperature Range: | Range -30° C to +70° C |

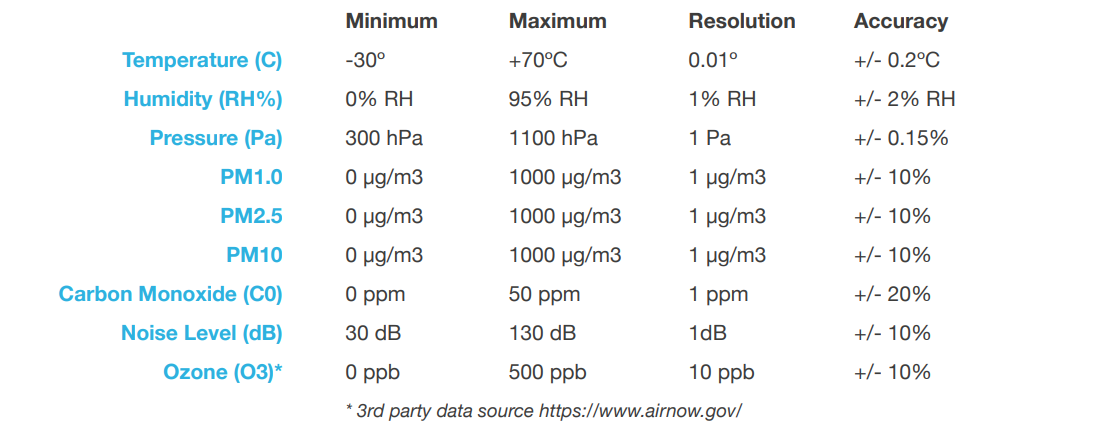

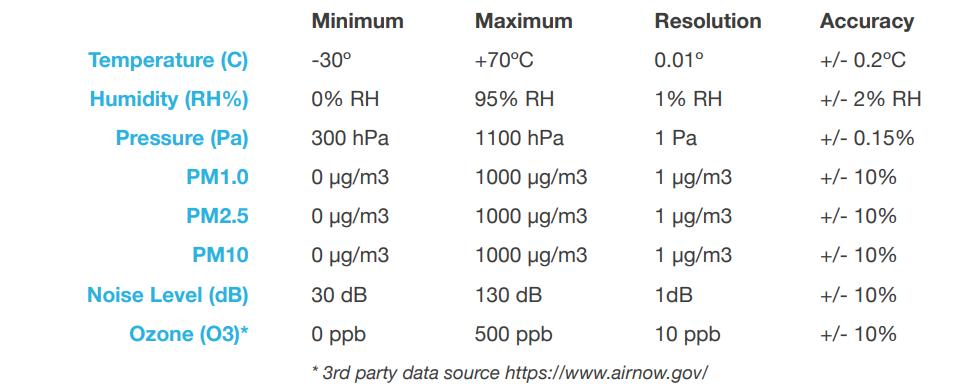

| Minimum | Maximum | Resolution | Accuracy | |
| Temperature (C) | -30° | +70° | 0.01° | +/- 0.2° |
| Humidity (RH) | 0% RH | 95% RH | 1% RH | +/- 2% |
| Pressure (Pa): | 300 Pa | 1100 Pa | 1 Pa | +/- 0.15% |
| PM1.0 | 0 µg/m3 | 1000 µg/m3 | 1 µg/m3 | +/- 10% |
| PM2.5 | 0 µg/m3 | 1000 µg/m3 | 1 µg/m3 | +/- 10% |
| PM10 | 0 µg/m3 | 1000 µg/m3 | 1 µg/m3 | +/- 10% |
| Sulfur Dioxide (SO₂) | 0 ppb | 20,000 ppb | 100 ppb | +/- 5% |
| Ozone (O₃) | 0 ppb | 5,000 ppb | 10 ppb | +/- 5% |
| Carbon Monoxide (CO) | 0 ppm | 50 ppm | 1 ppm | +/- 20% |
| Nitrogen Dioxide(NO₂) | 0 ppb | 5,000 ppb | 100 ppb | +/- 5% |
| Noise Level (dB) | 30dB | 130dB | 1dB | +/- 10% |
