UbiGrid Distribution Transformer Monitoring (DTM+)
Improve power distribution reliability and prevent future failure with remote transformer monitoring
360-degree Visibility
- Monitors primary current
- Secondary voltage & current
- Oil temperature & pressure
- Detects voltage sag/swells
Real-time AI and Analytics
- Load and phase imbalance
- Shorts in winding
- Power theft
- Data-based failure prediction
Reduce O&M Costs
- Proactive maintenance
- Transformer efficiency
- Minimize truck rolls
- Inventory management
Simple & Fast Installation
- Installs in minutes
- One platform pole/pad mount
- Single phase & three phase
- Retrofit & OEM installations

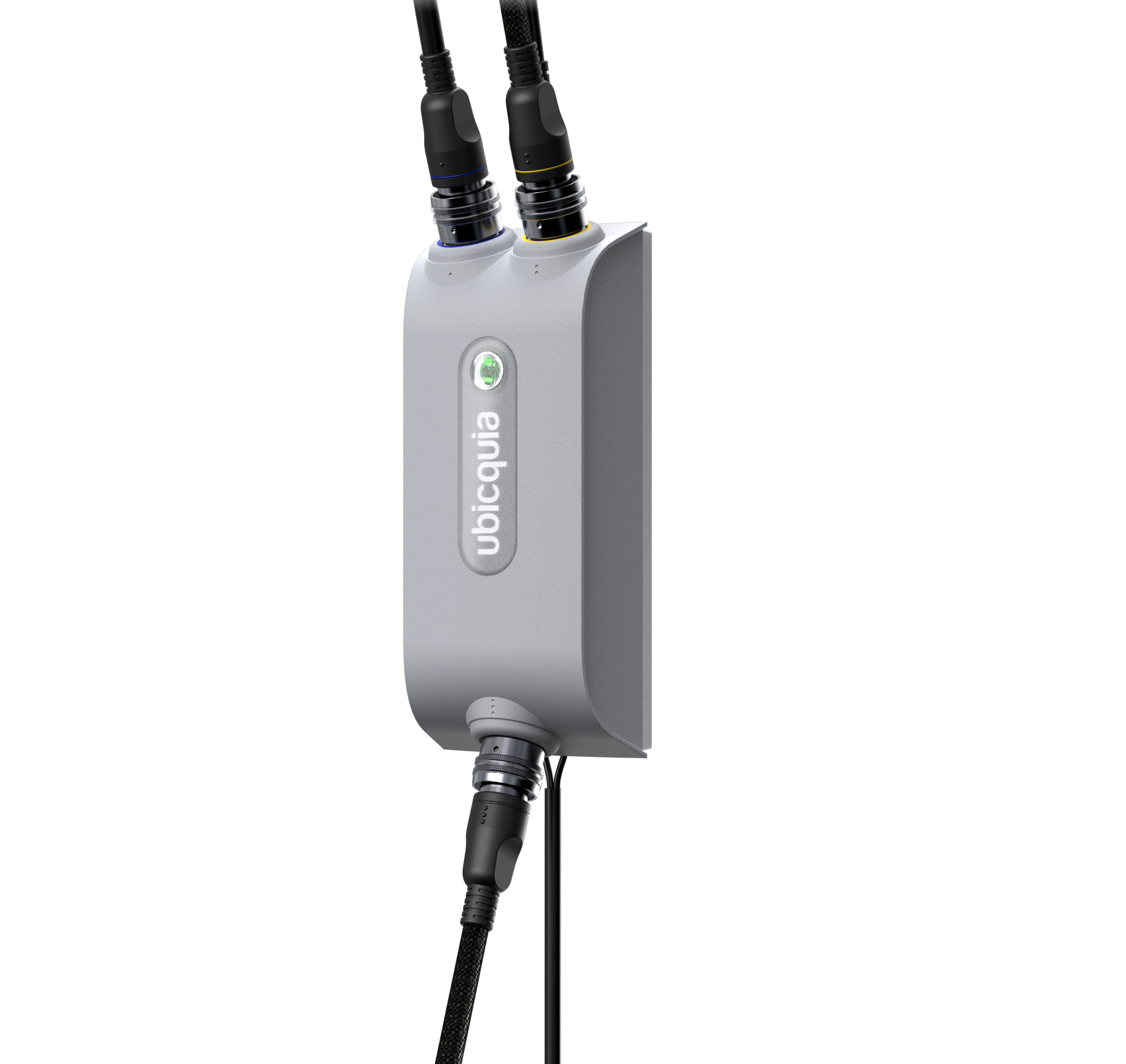

The UbiGrid DTM+ is the industry's first LTE-based sensor that provides remote diagnostics and proactive transformer monitoring of critical, field deployed grid assets.
Real-time analytics and damage assessments allow grid operators to rapidly respond, preventing outages before they happen and reducing restoration time. The sensor extends transformer monitoring technology to enable future failure prediction and prevention.
This gives you a crystal clear picture of your distribution transformers, helping improve System Average Interruption Duration Index (SAIDI) while reducing O&M costs and the economic impact of outages. For example, tilted and leaking transformers are identified before dielectric damage to coils can occur.
On Demand
Learn how Florida Power & Light is building a more modern grid by deploying remote sensing technology for predictive asset failure, superior storm response and enhanced situational awareness.

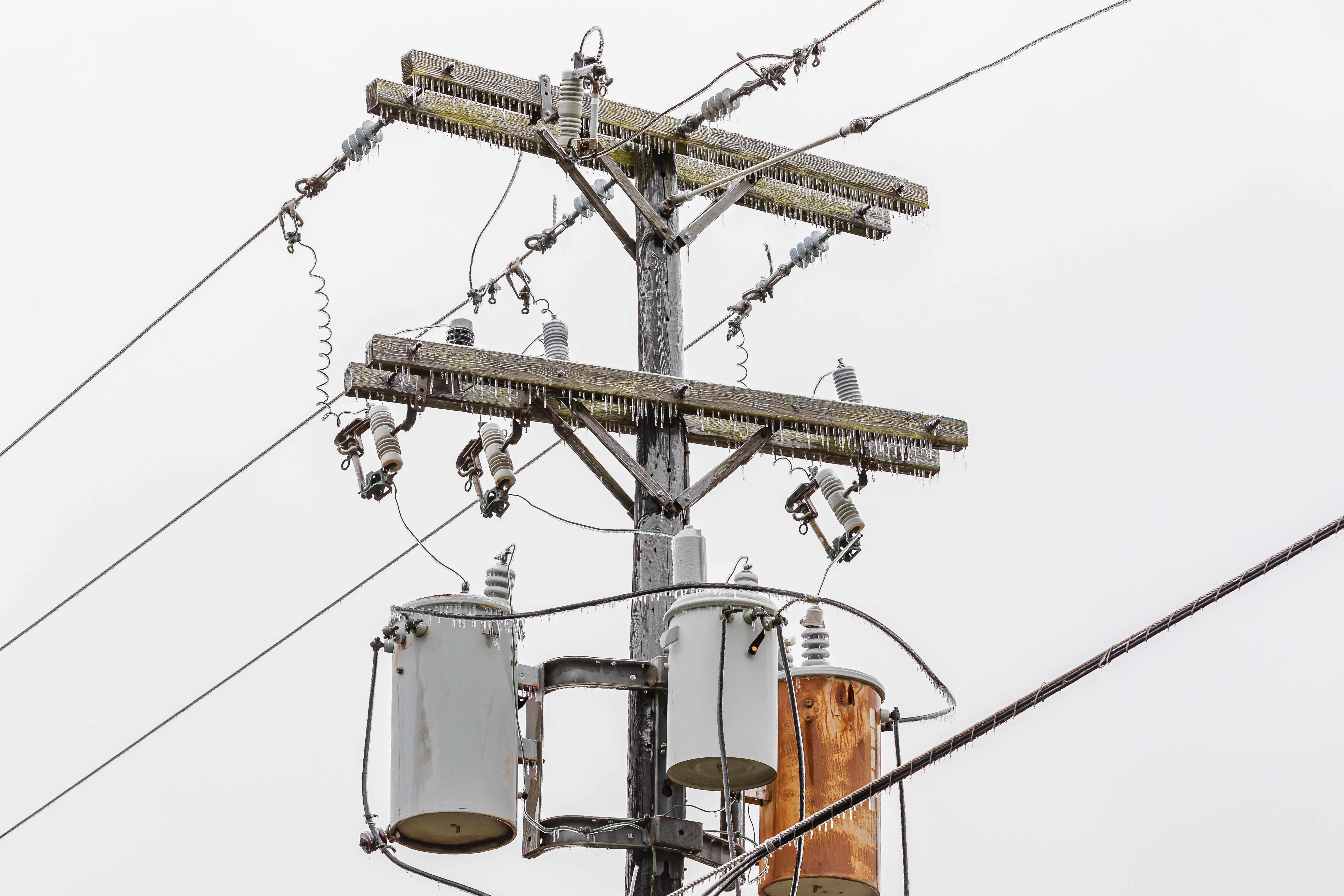

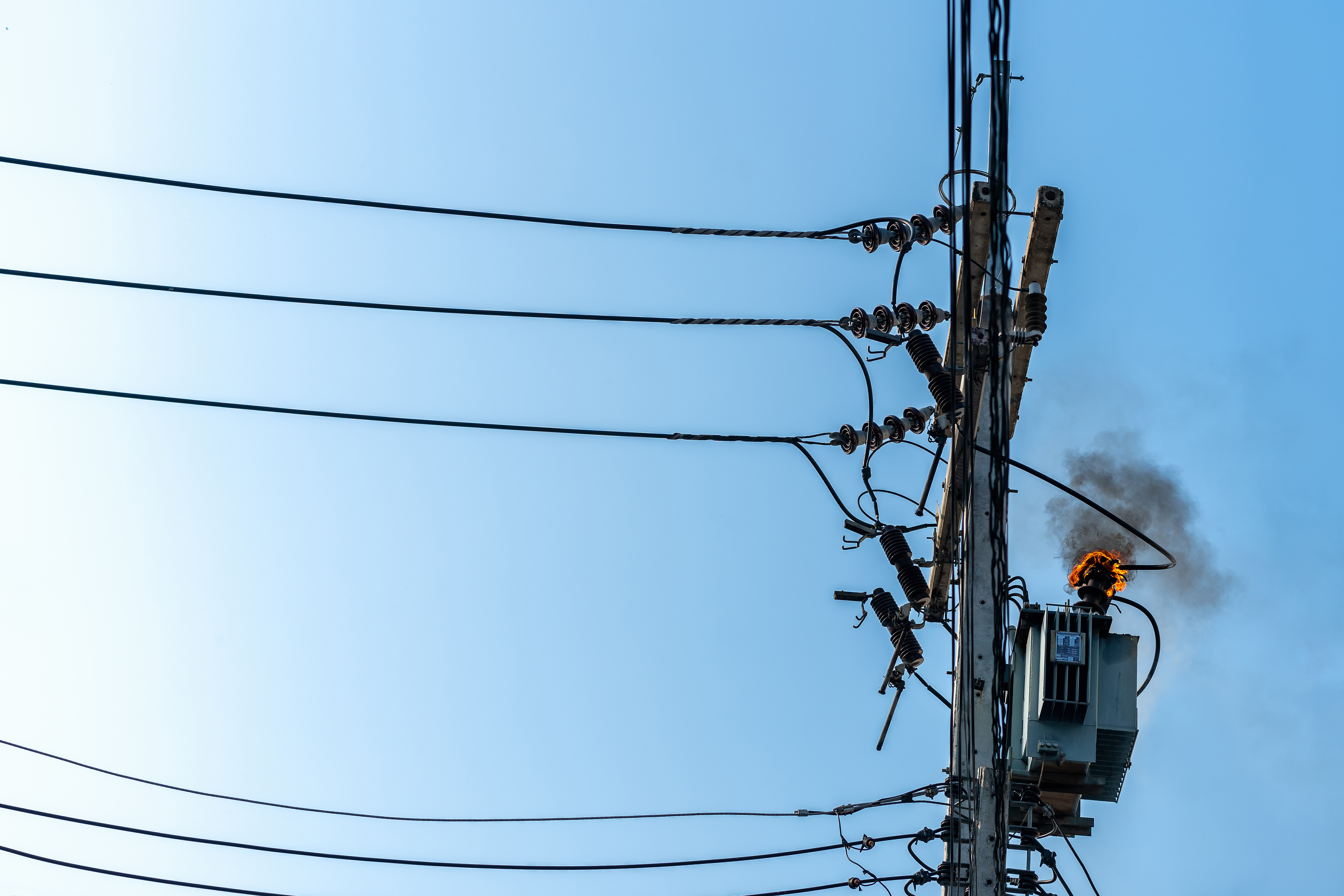

Ubicquia enables utilities and grid operators to monitor and maintain the millions of pole and pad mount power transformers at the grid edge. With 70% of downtime and service costs caused by faulty or aging transformers, the UbiGridTM DTM+ makes it possible to isolate problems quickly and affordably.
The insights collected by the DTM+ also enables utilities to identify power theft, make data-driven decisions and improve the design and performance of the distribution grid.

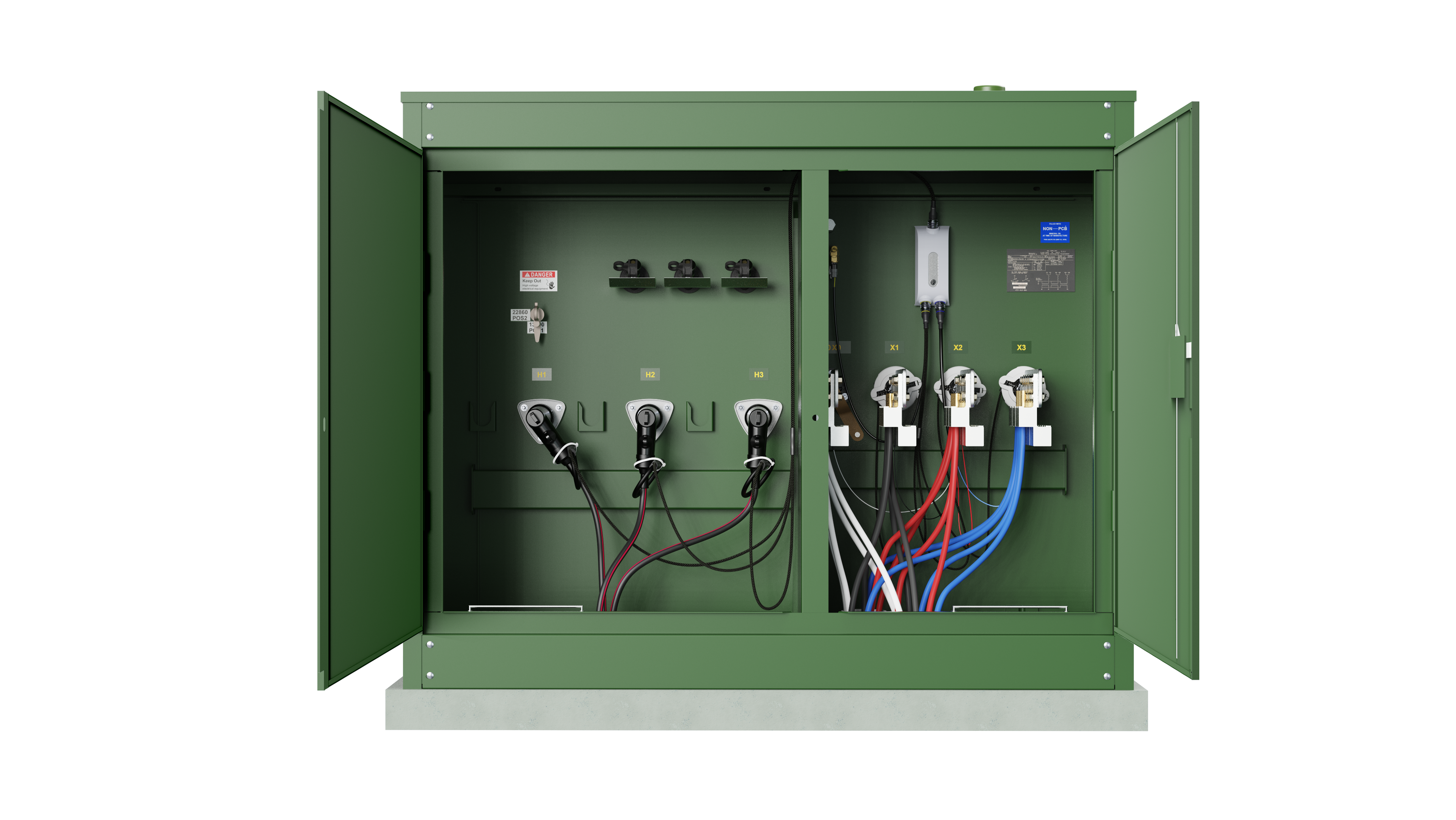

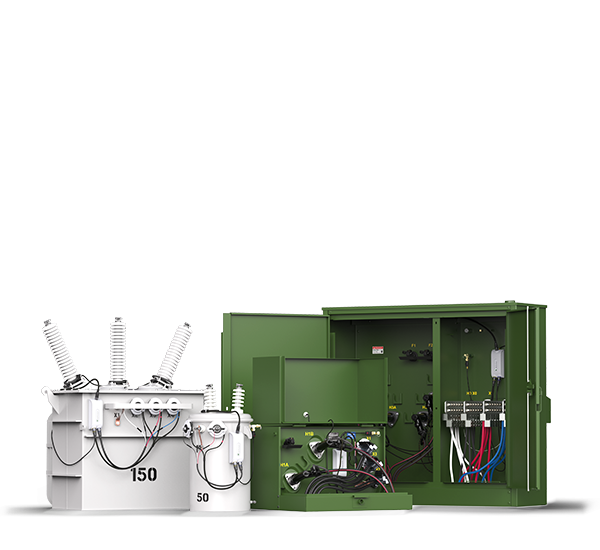

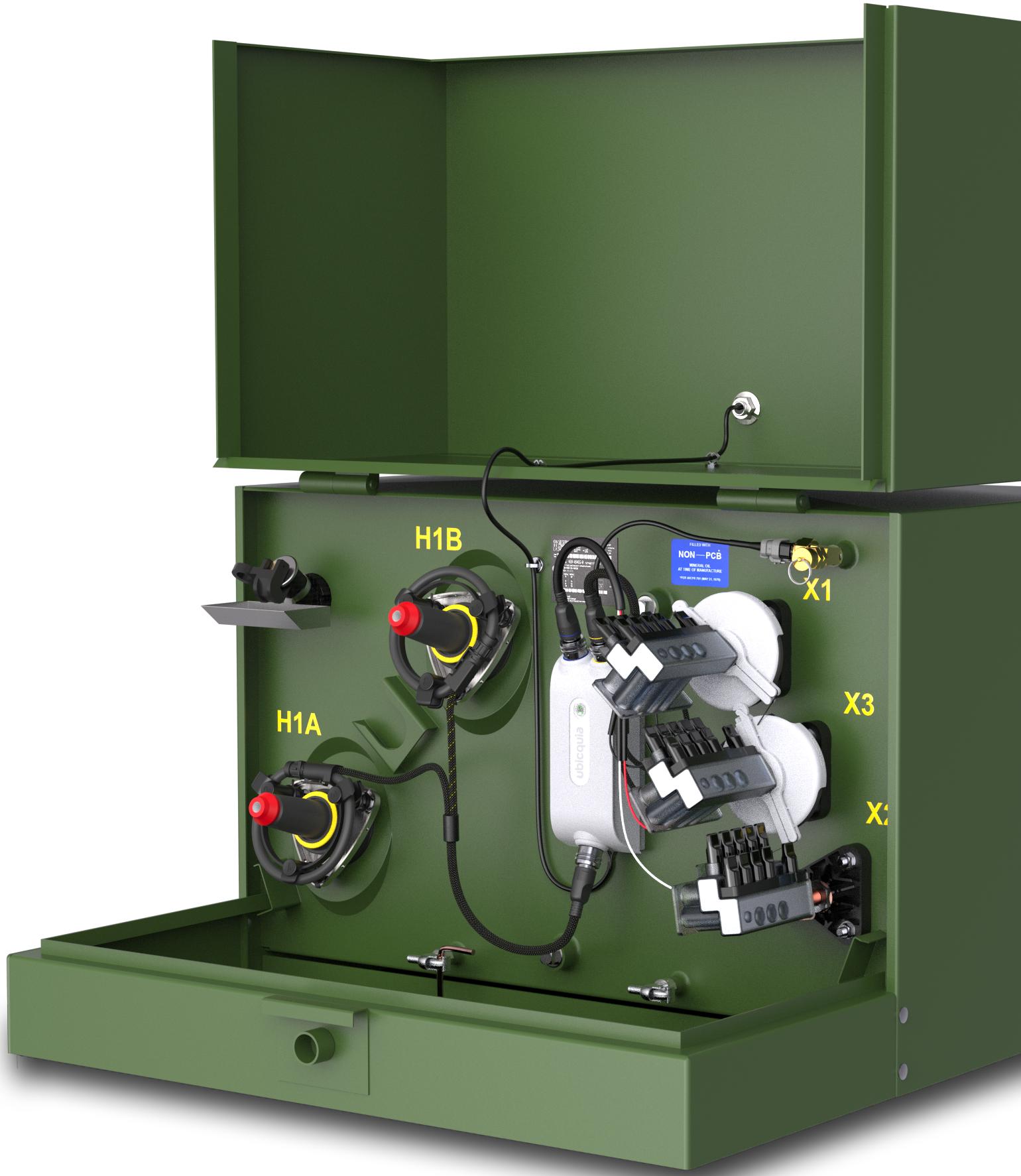

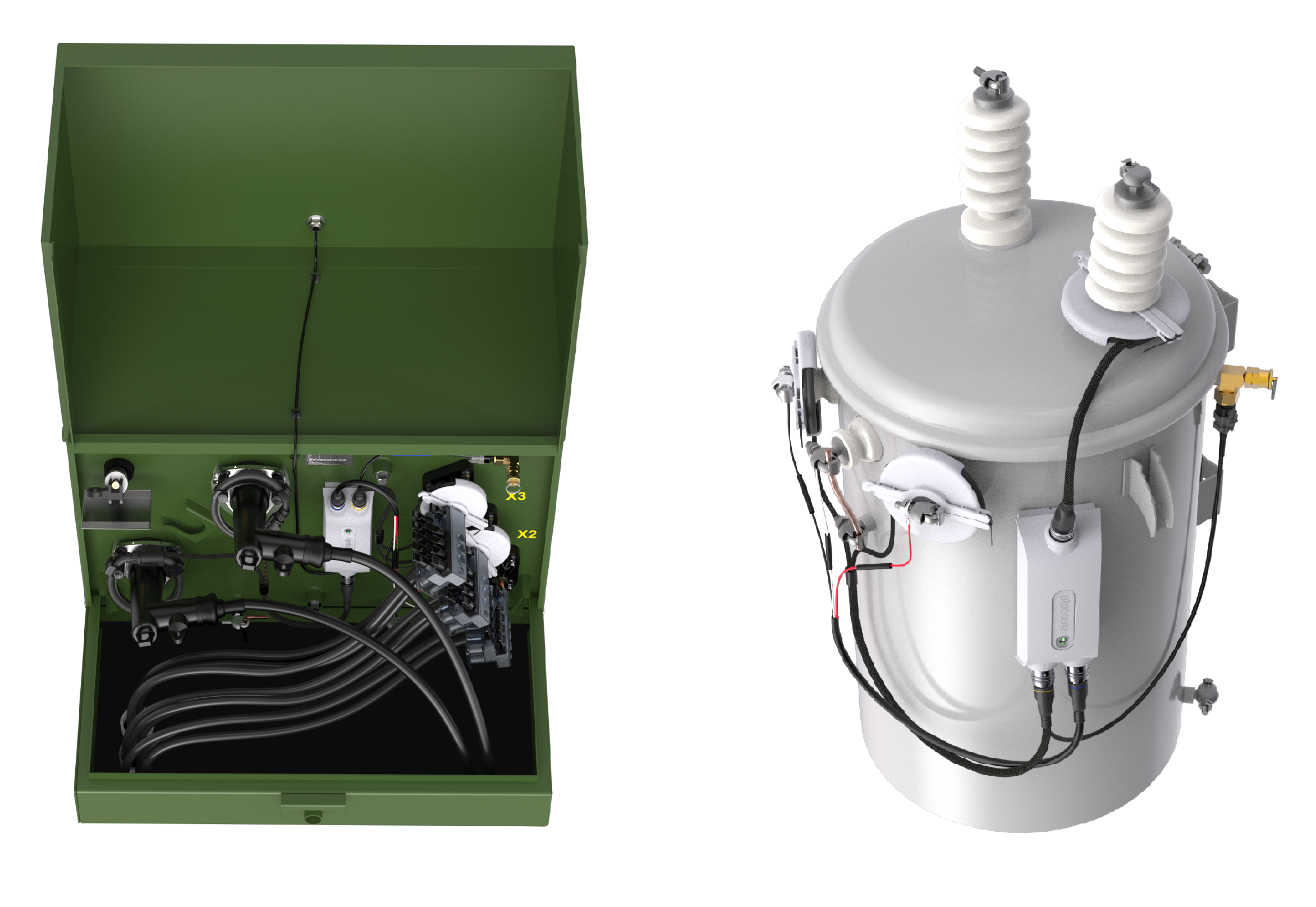

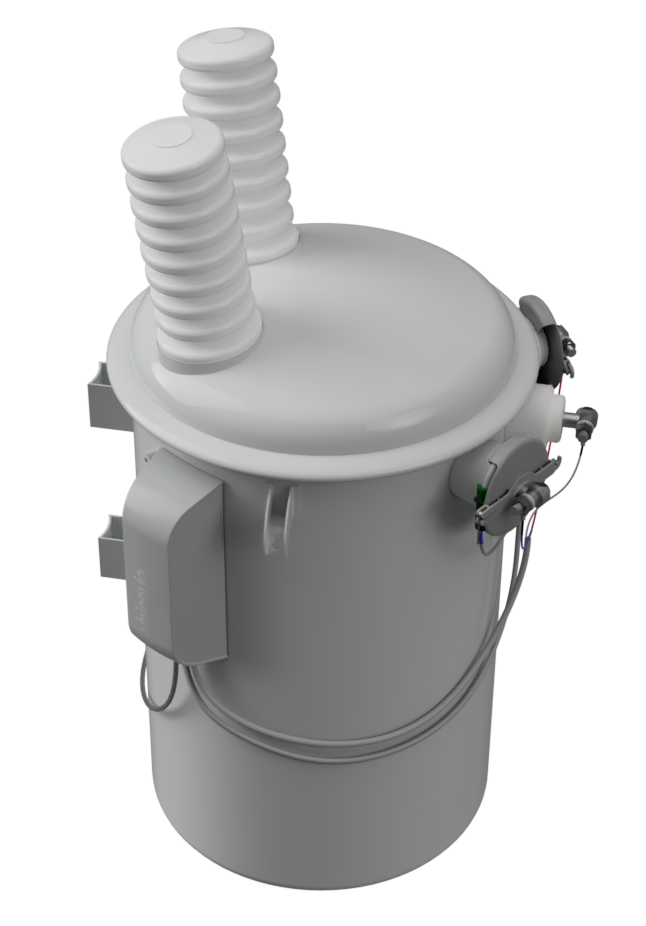

Compatible with most transformer manufacturers and 500M+ poles worldwide, it can be installed onto existing pole and pad mount transformers using a non-invasive attachment.
Ubicquia enables utilities and grid operators to monitor and maintain the millions of pole and pad mount power transformers at the grid edge. With 70% of downtime and service costs caused by faulty or aging transformers, the UbiGridTM DTM+ makes it possible to isolate problems quickly and affordably.
The insights collected by the DTM+ also enables utilities to identify power theft, make data-driven decisions and improve the design and performance of the distribution grid.
Compatible with most transformer manufacturers and 500M+ poles worldwide, it can be installed onto existing pole and pad mount transformers using a non-invasive attachment.
Ubicquia enables utilities and grid operators to monitor and maintain the millions of pole and pad mount power transformers at the grid edge. With 70% of downtime and service costs caused by faulty or aging transformers, the UbiGridTM DTM+ makes it possible to isolate problems quickly and affordably.
The insights collected by the DTM+ also enables utilities to identify power theft, make data-driven decisions and improve the design and performance of the distribution grid.
Compatible with most transformer manufacturers and 500M+ poles worldwide, it can be installed onto existing pole and pad mount transformers using a non-invasive attachment.
Increased Reliability
Real-time data improves System Average Interruption Duration Index (SAIDI) reliability metrics.
Simple Deployment
Installs in minutes across a wide range of transformer sizes using non-invasive attachment.
Intelligence at the Edge
A maintenance-free solution that feeds back insights and provides real-time notifications.
How Transformer Monitoring works with the UbiGrid DTM+
Ubicquia has reinvented digital transformer monitoring by providing real-time visibility of a transformer's condition and metrics at the grid edge. Typical DTMs measure oil temperature or delivered kVA (kilo volt amp) load. The UbiGrid DTM+ does this and much more, including: pole tilt and vibration, voltage sag and swell, secondary current, power surge protection oscillography of voltage anomalies, power theft detection, and failed transformer alerts. The monitor provides instant notification of these critical analytics, with the reporting frequency individually set per transformer.

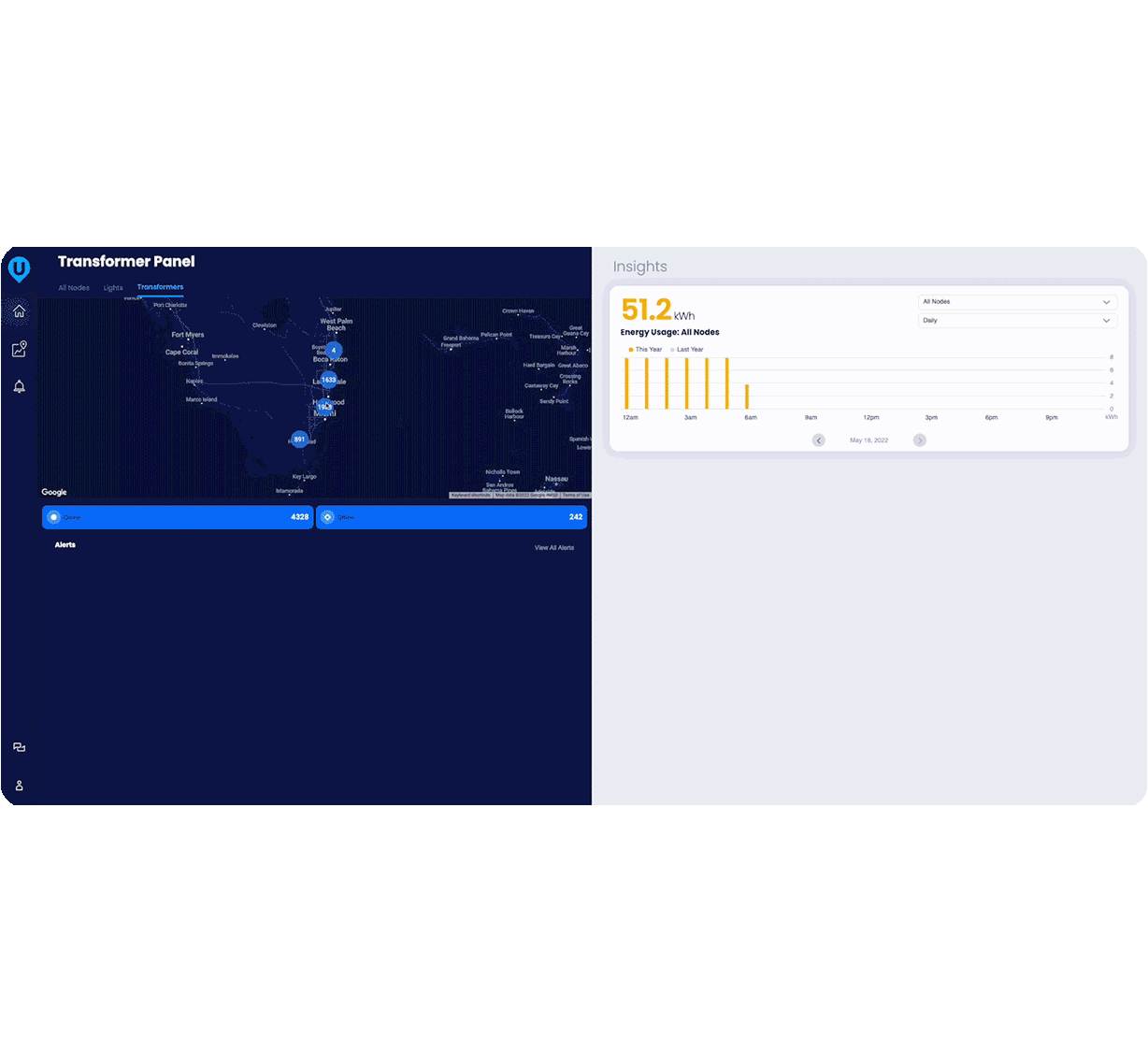

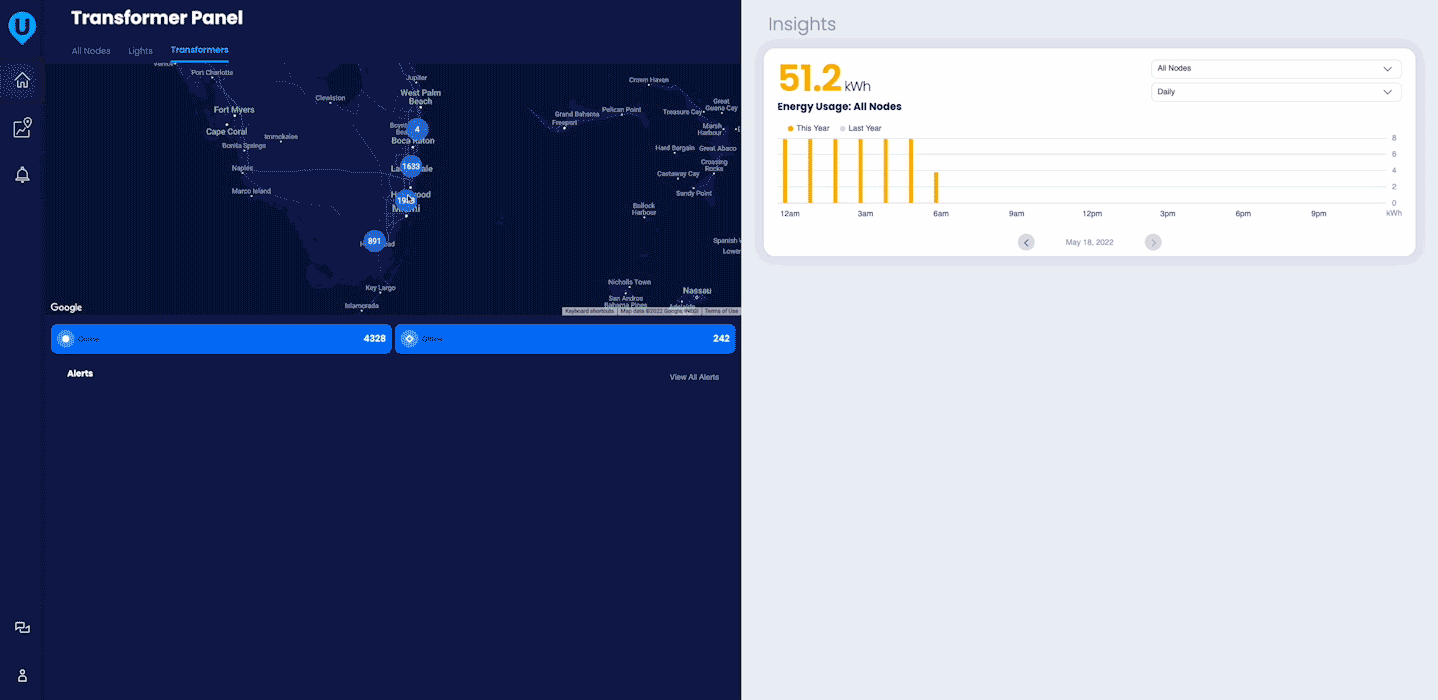

The UbiGrid DTM+ sensor leverages public or private LTE networks already in place to provide real-time data for better performance and decisions. This removes the need to deploy another communications network. Failure prediction and prevention is reliable and accessible thanks to the real-time health analytics and alerts communicated over the cloud to our data management platform.
How UbiGrid DTM+ Compares
| UbiGrid DTM+ | Others | |
|---|---|---|
| Less than 15 minute installation | ✔ | ☓ |
| Public and private LTE | ✔ | ☓ |
| Last gasp messaging | ✔ | ☓ |
| GPS | ✔ | ☓ |
| Monitors primary & secondary | ✔ | ☓ |
| Tilt and vibration sensing | ✔ | ☓ |
| Oil Temperature and pressure sensing | ✔ | ☓ |

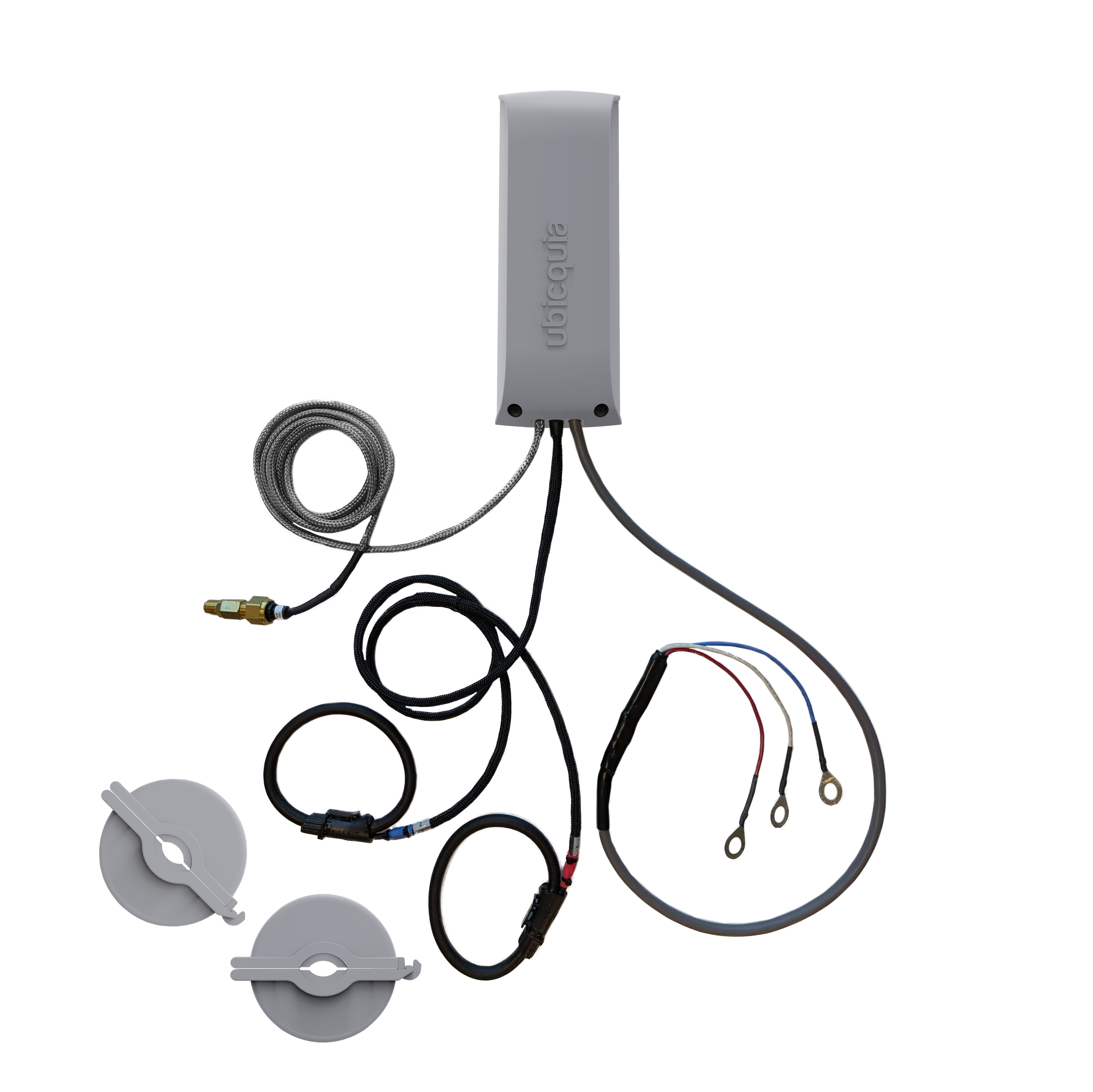

| UBIGRID DTM+ FEATURES | UBIGRID DTM+ SPECIFICATIONS |
|---|---|
| Configurable alert thresholds and notifications | Environmental Rating: IP67 |
| Over-the-air (OTA) firmware upgrades | Impact rating: IK09 |
| API option to aggregate reports at varying intervals | Line Voltage Range: 90V-506VAC |
| Real-time oil temperature and pressure reporting | Size: 8.8”L x 3.9”W x 2.5”D |
| Primary and secondary current detection | Weight: <2lbs |
| Secondary voltage and delivered kVA |
