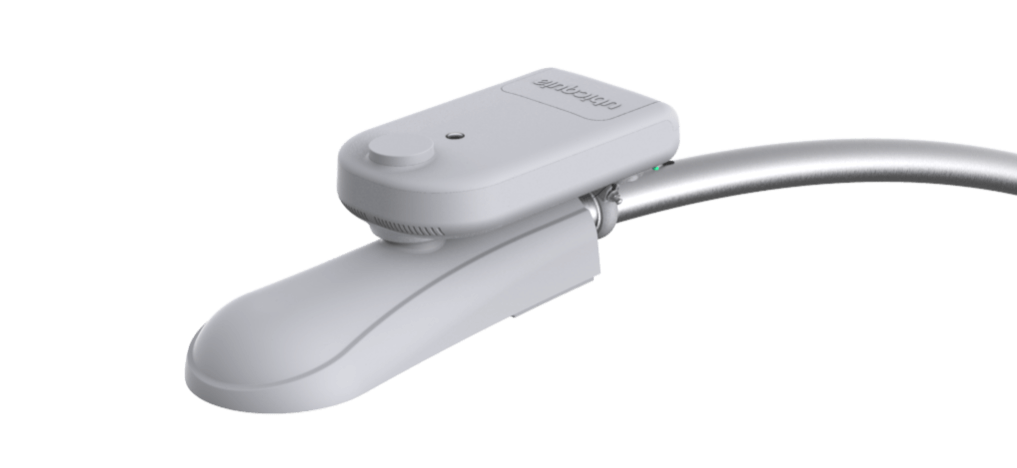

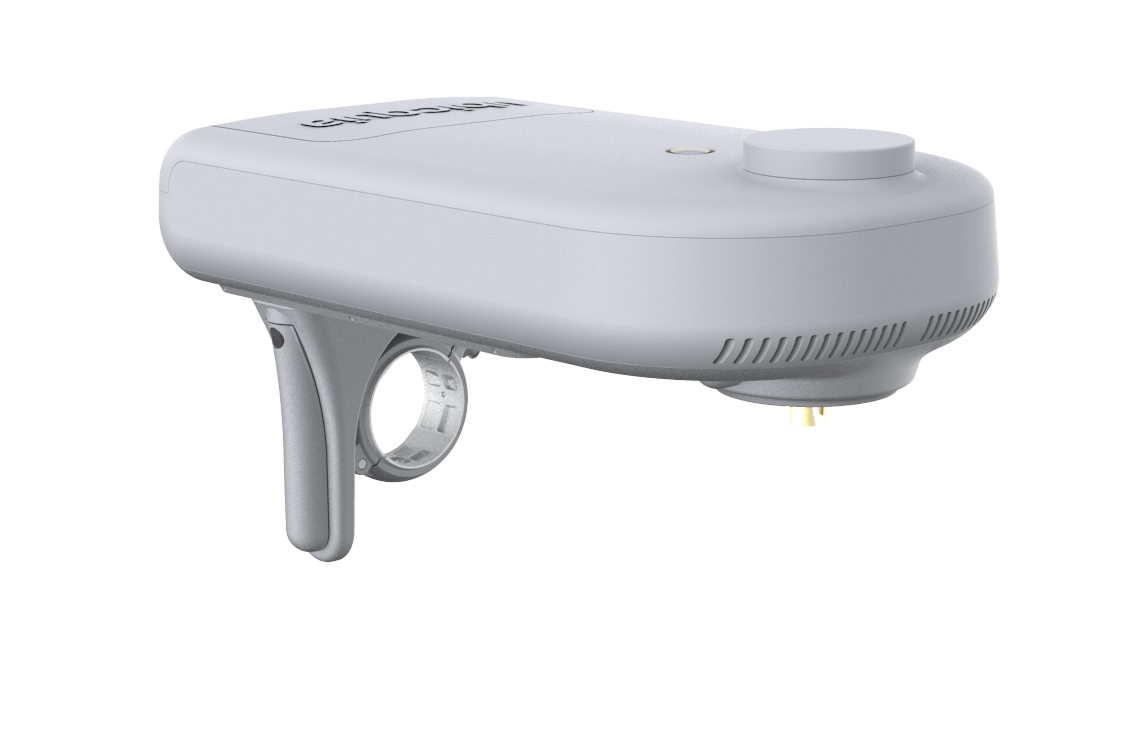

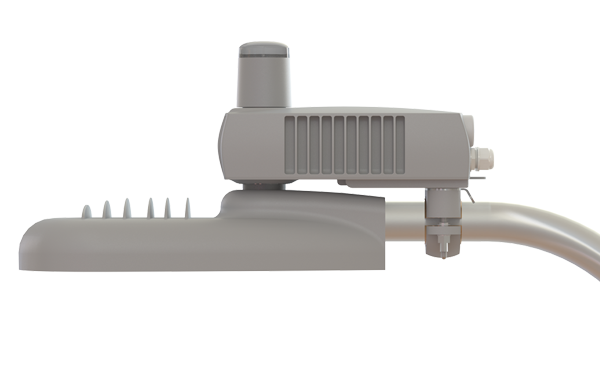

Industry’s First
Streetlight Small Cell
Compatible with 360M+ streetlights worldwide, accelerating the densification of 4G and 5G networks
UbiMetro removes the complexity of building small cell networks with integrated MIMO antennas, a wide range of RF front ends, with fiber, Ethernet or DOCSIS backhaul options. Fixture agnostic and barely visible from street level, UbiMetro meets city’s aesthetic and sustainability requirements while driving connectivity, safety and savings.

Rapidly deployable at scale, and easily installed in minutes, UbiMetro simplifies small cell site acquisition and permitting challenges with the lowest total cost of ownership (TCO) on the market today.


Small Cells in Smart Cities

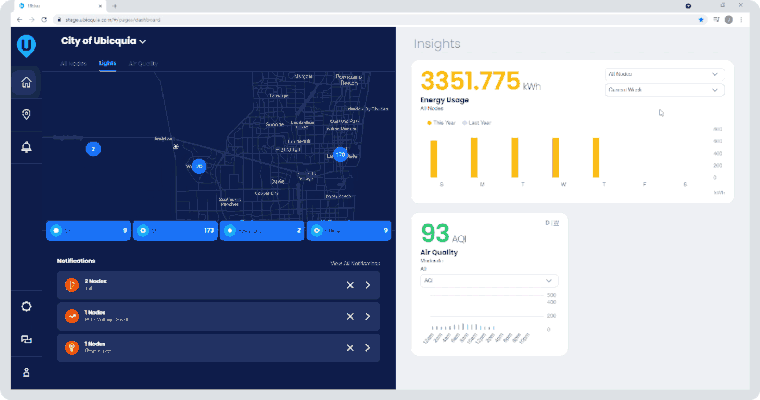

UbiMetro includes a full range of certified utility control and metering capabilities along with real-time GPS, Tilt and Vibration data to improve asset management, reduce O&M expenses and be more responsive to network outages.

Universal Compatibility
- Most LED or HID streetlights
- All 3, 5 and 7 pin streetlight sockets
- Optimized for weight and wind loading

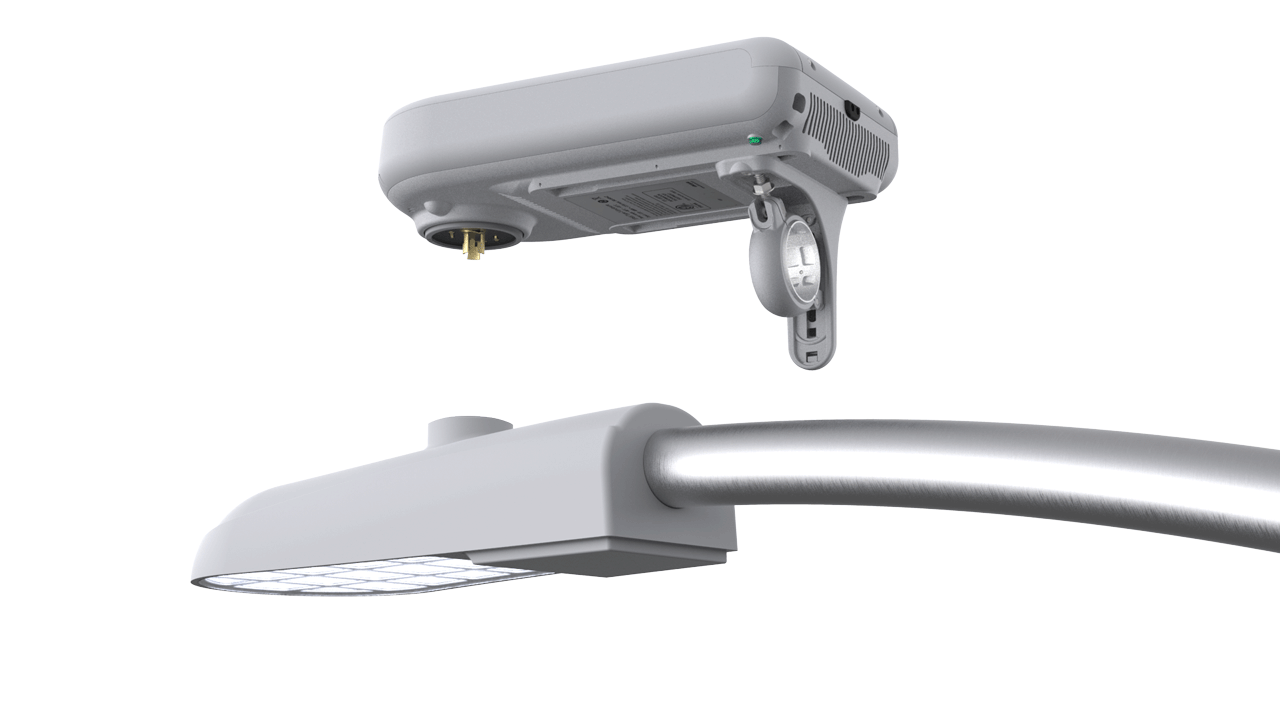

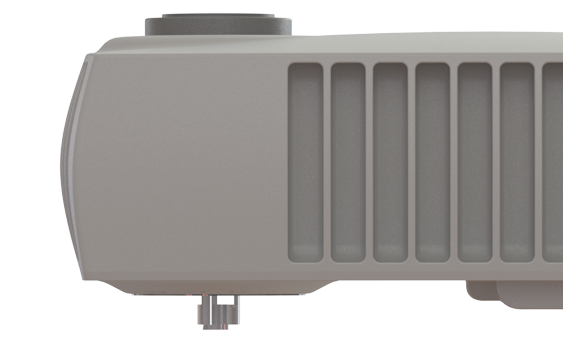

Simplified Installation

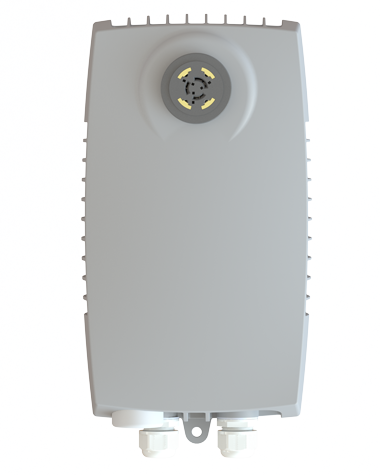

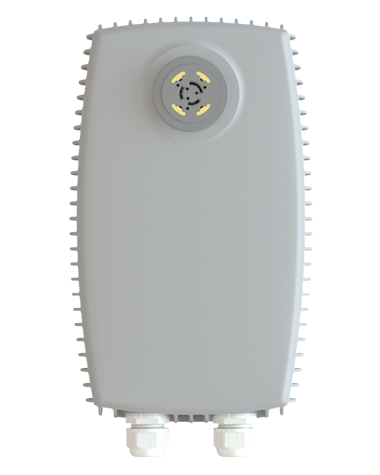

- Powered through the NEMA socket
- Auto carrier configuration
- Typically installs in under 15 minutes

Flexible
Network
- eNodeB, C-RAN and open RAN configurations
- 4G and 5G deployments
- Private Networks

Simply
Deployed
- Fixture-agnostic with rapid installation
- Fiber, Ethernet, or DOCSIS backhaul options
- 4 x 5 Watt radio with integrated antennas

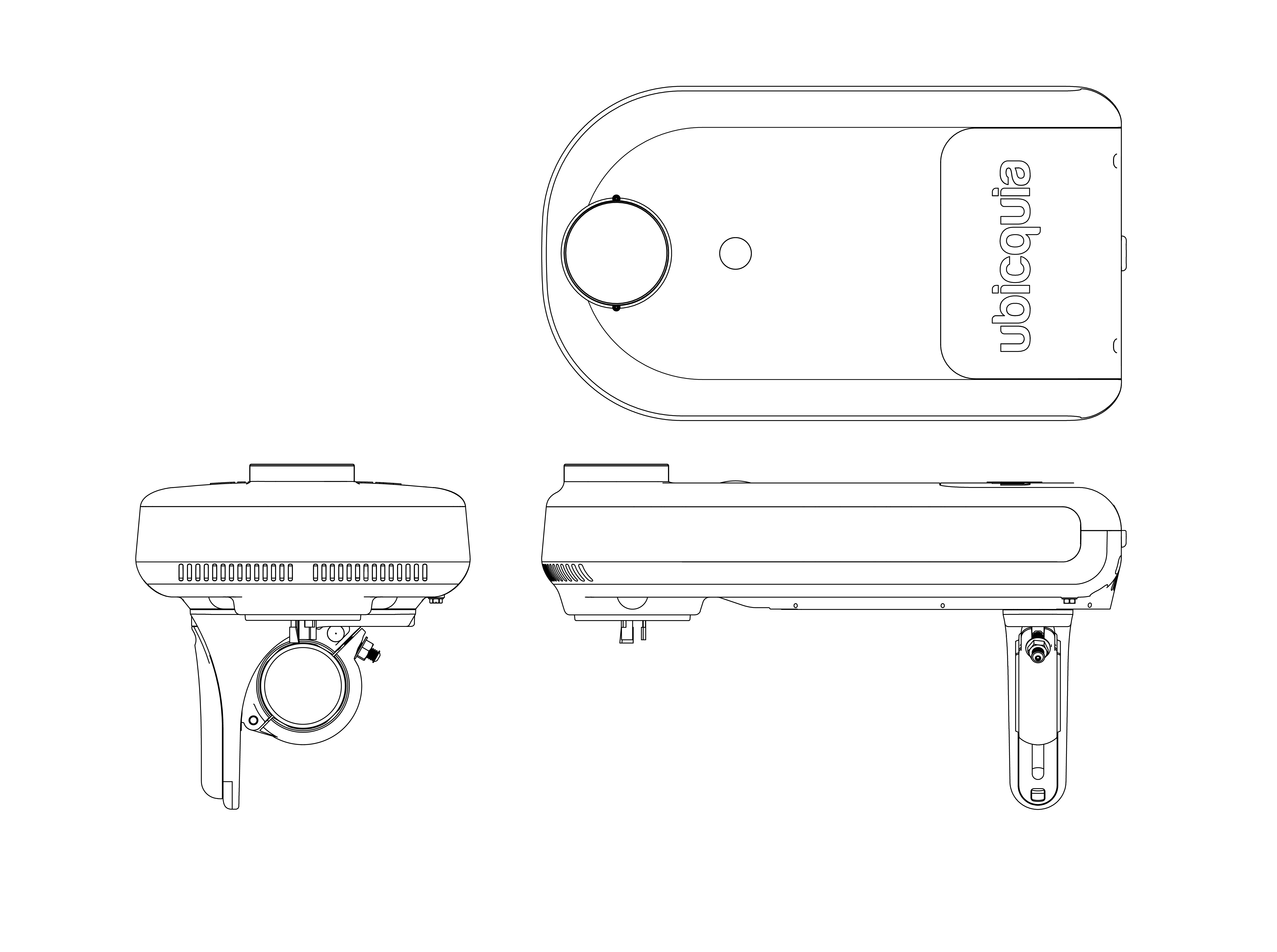

Dimensions : | 414mm x 239mm x 82mm |
---|---|
Radio power : | 4 x 5 Watt |
Antennas : | Integrated omni-directional |
Power Supply : | 110V to 480V, 50/60Hz autosensing |
Average Power Consumption : | 120W |
IP Rating : | IP65 |
Utility integration : | Asset monitoring. Light control and integrated metering |
Impact Rating : | IK07 |
Ambient Temperature Range : | 40C to +55C |
Backhaul : | 1Gb Ethernet, fiber or copper via SFP |
