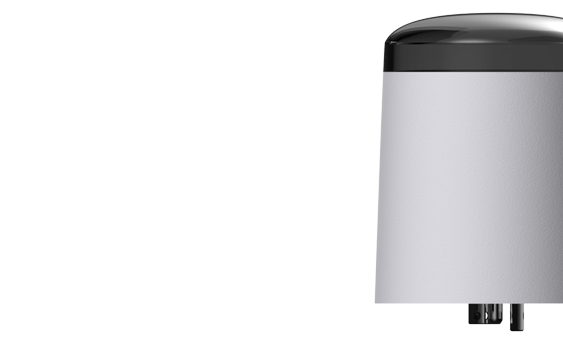

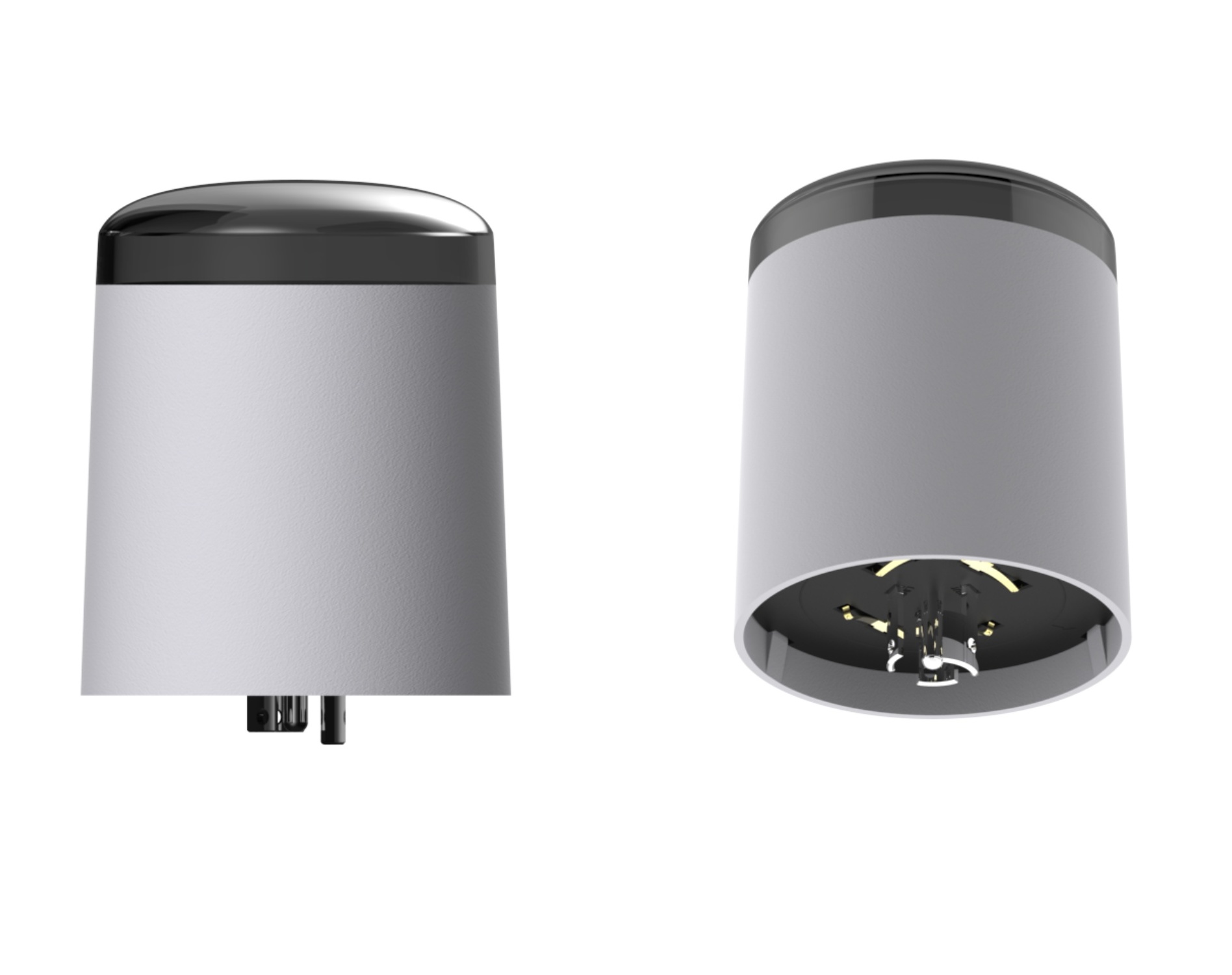

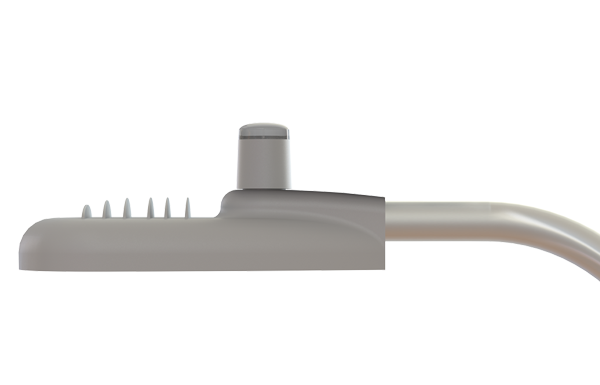

Compatible with 360M+ streetlights worldwide, plug and play streetlight photocell replacement, providing advanced light control, voltage detection, utility grade metering, tilt/vibration sensing and connections to smart city sensors services.
Our smart city solution featuring LTE data communications, DALI dimming protocols and real-time data access to power usage, quality of line and load generates energy and maintenance savings, while simplifying asset management .

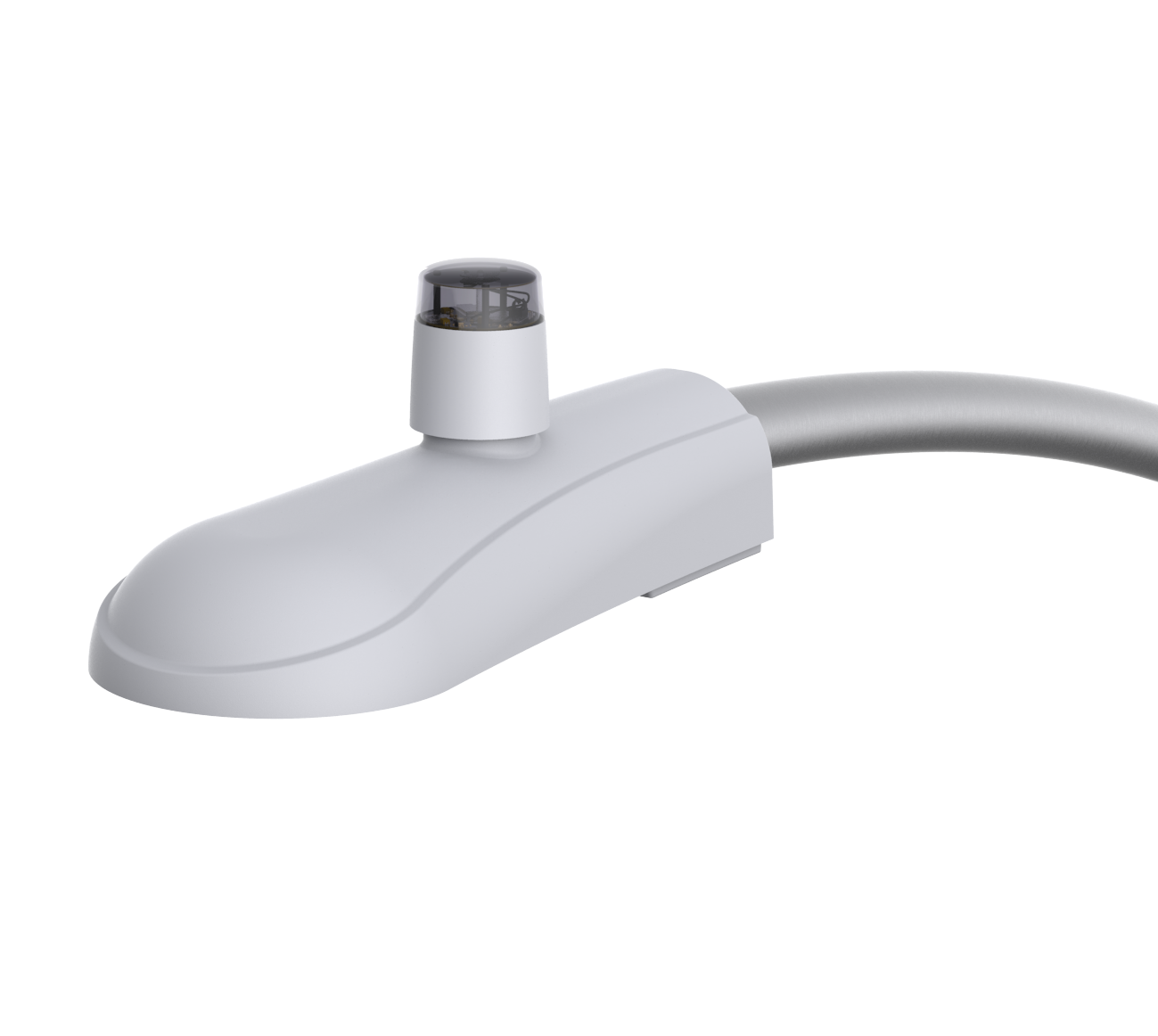

The sky’s the limit for sustainability, safety and savings with more efficient asset management than ever before. UbiCell includes a full range of certified utility control and metering capabilities along with real-time GPS, tilt and vibration data to improve asset management, reduce O&M expenses and be more responsive to network outages.
Asset management made simple
UbiVu is a web-based analysis and management tool providing real-time data and insights of your Ubi-deployment. Monitor and predict the environment in new and innovative ways including energy usage data, air quality status and system notifications through a smart and customizable interface with remote troubleshooting and OTA updates.
Operations & Maintenance
- Advanced light control
- Utility metering
- Power loss detection
- High accuracy tilt and vibration sensor
Simplified Installation
- Plug and Play
- Auto carrier configuration
- OTA firmware update
- Eliminate mounted gateways
Sensor Connectivity
- Every streetlight is a smart city area
- 2-wire connections for power/data
- Sensor data aggregation
- 2-way comms. for sensor calibration
Location Based Services
- Pedestrian movement
- Vehicle movement
- Congestion level/dwell time
- Beacon triggers

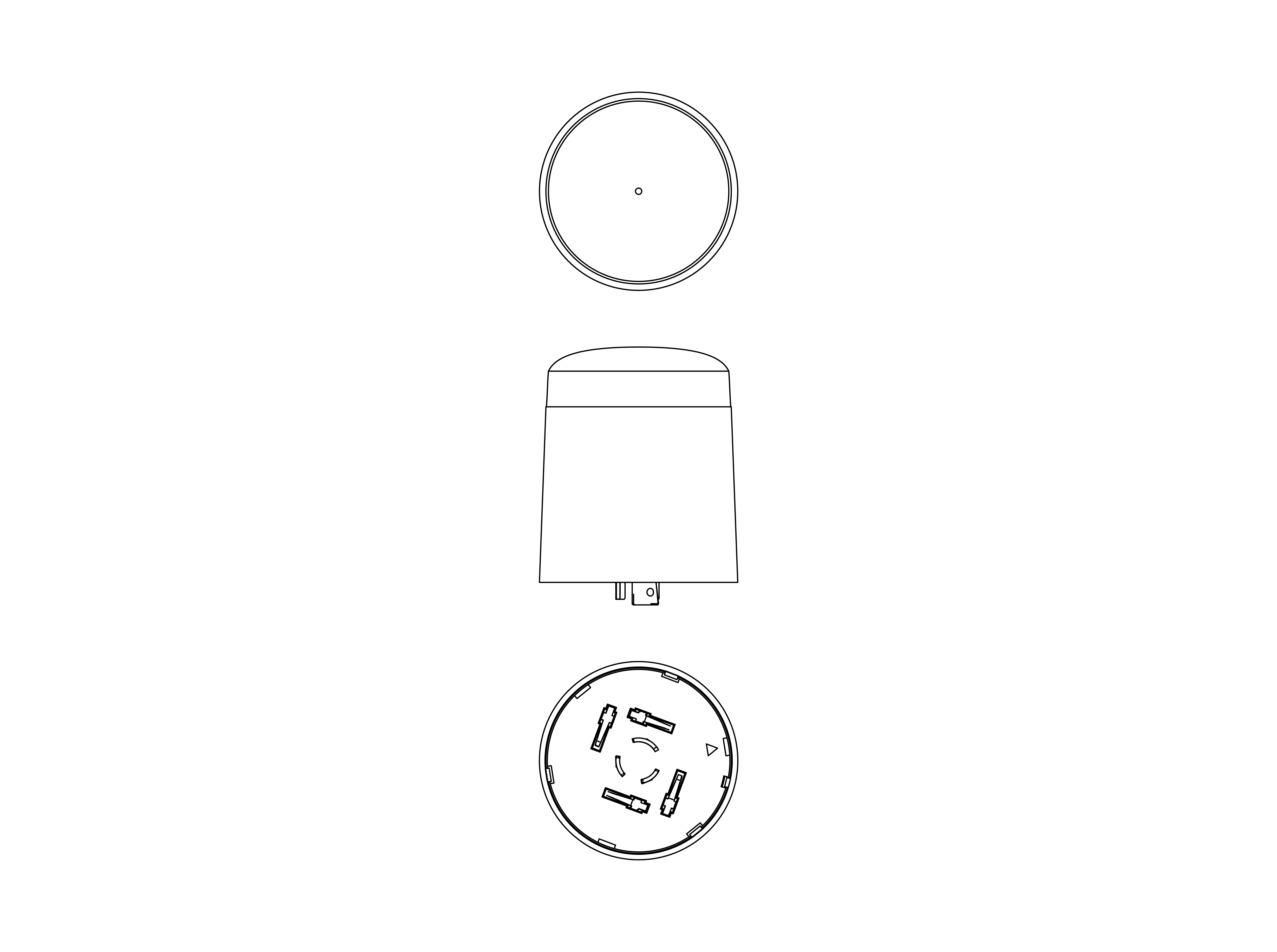

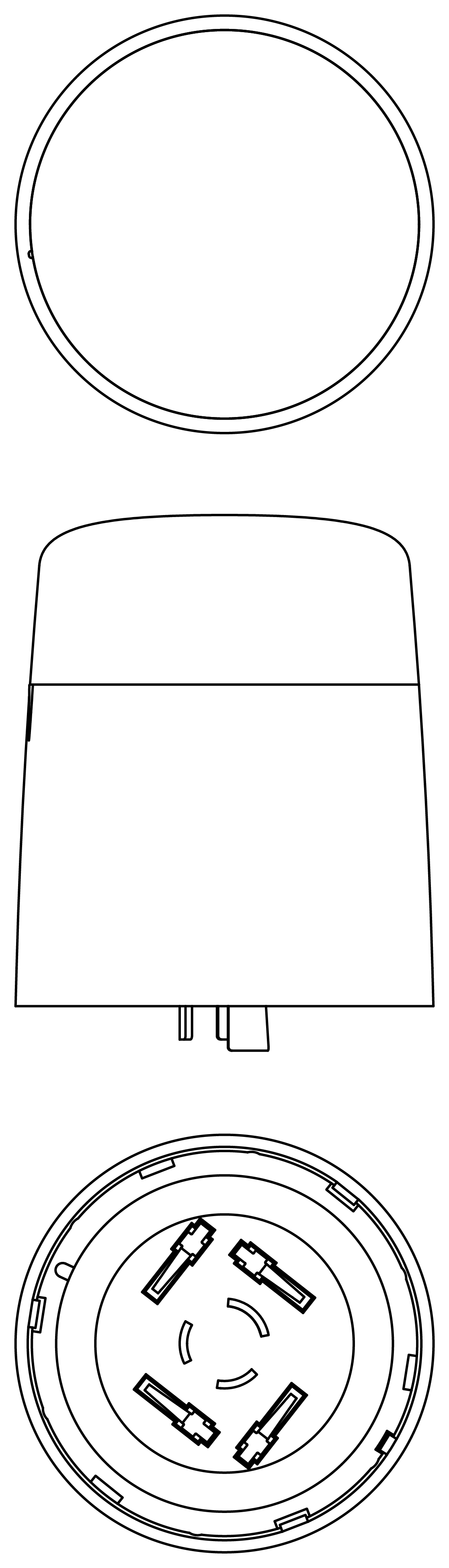

| Dimensions : | 98mm X 82.5mm diameter |
|---|---|
| Power Surge Detection : | 10kV/5KA |
| Power Supply : | 90V to 506V (50/60Hz) |
| Dimming Controls : | 0-10V, DALI, DALI-2 |
| IP Ratings : | IP66 |
| Impact Rating : | IK07 |
| Operating Temperature Range : | -30C to +70C |
| Communication Module : | LTE, CAT-1 |
| Bands Supported : | B2/B4/B12 |
