UbiHub APAI Smart City Platform

Improve public safety, deliver public Wi-Fi, and reduce energy costs with your existing streetlight infrastructure.



ICON wifi6_0.png

Wi-Fi 6 AP

  • 2.4Ghz and 5Ghz radio
  • 12 integrated omni antennas
  • Dynamic bandwidth
  • 200 client connections per AP
ICON real time notification.png

Edge Analytics

  • 8-core neural AI processor
  • Dual directional microphones
  • Dual 4K cameras
  • 15 days video storage
ICON public safety_0.png

​​​​​Use Cases

  • Traffic analytics
  • Street analytics
  • Public safety analytics
  • Video/Audio streaming
ICON plug and play_0.png

Simple Install

  • Plugs into photocell socket
  • Install in seconds, data in minutes
  • PoE port for 3rd party devices
  • One platform, many applications

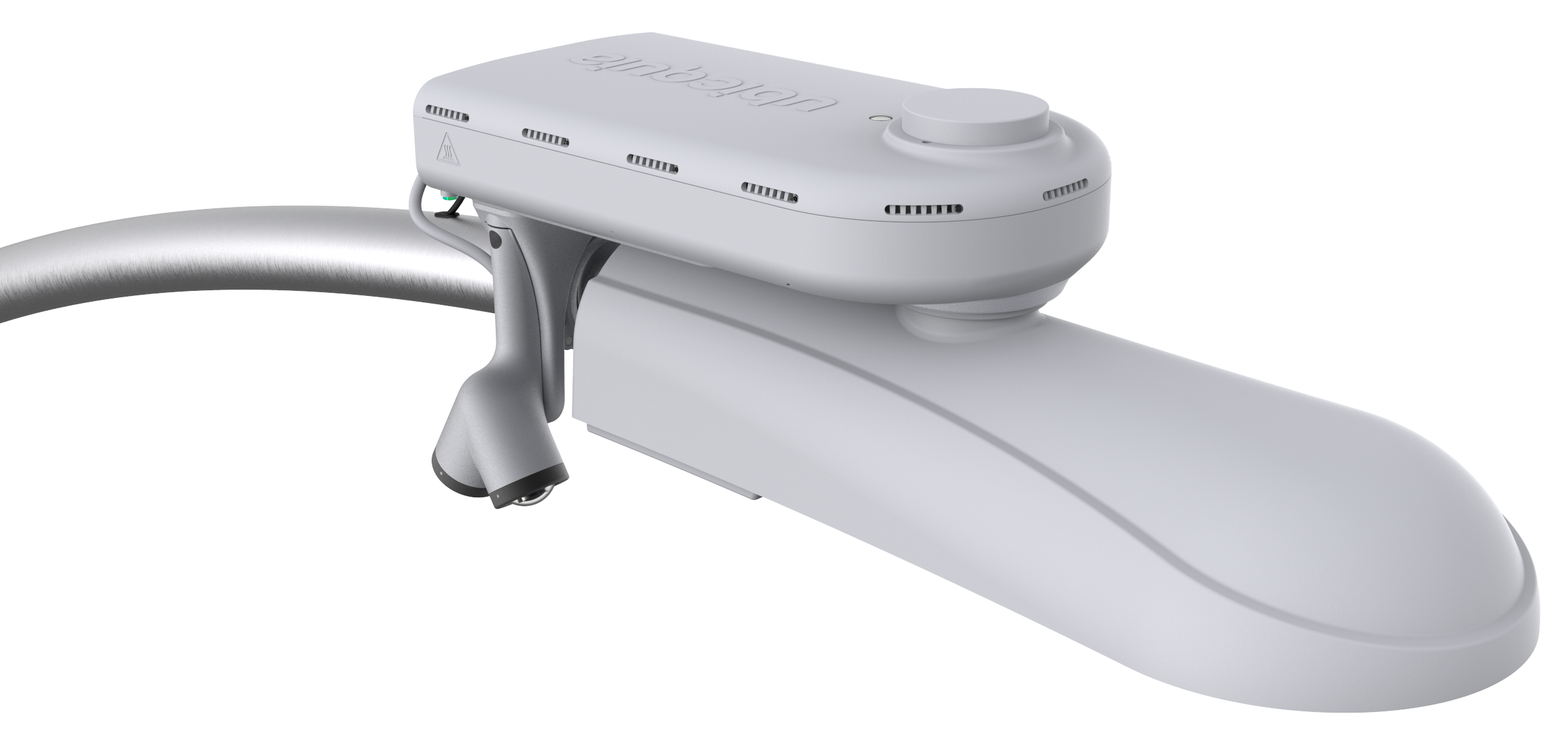

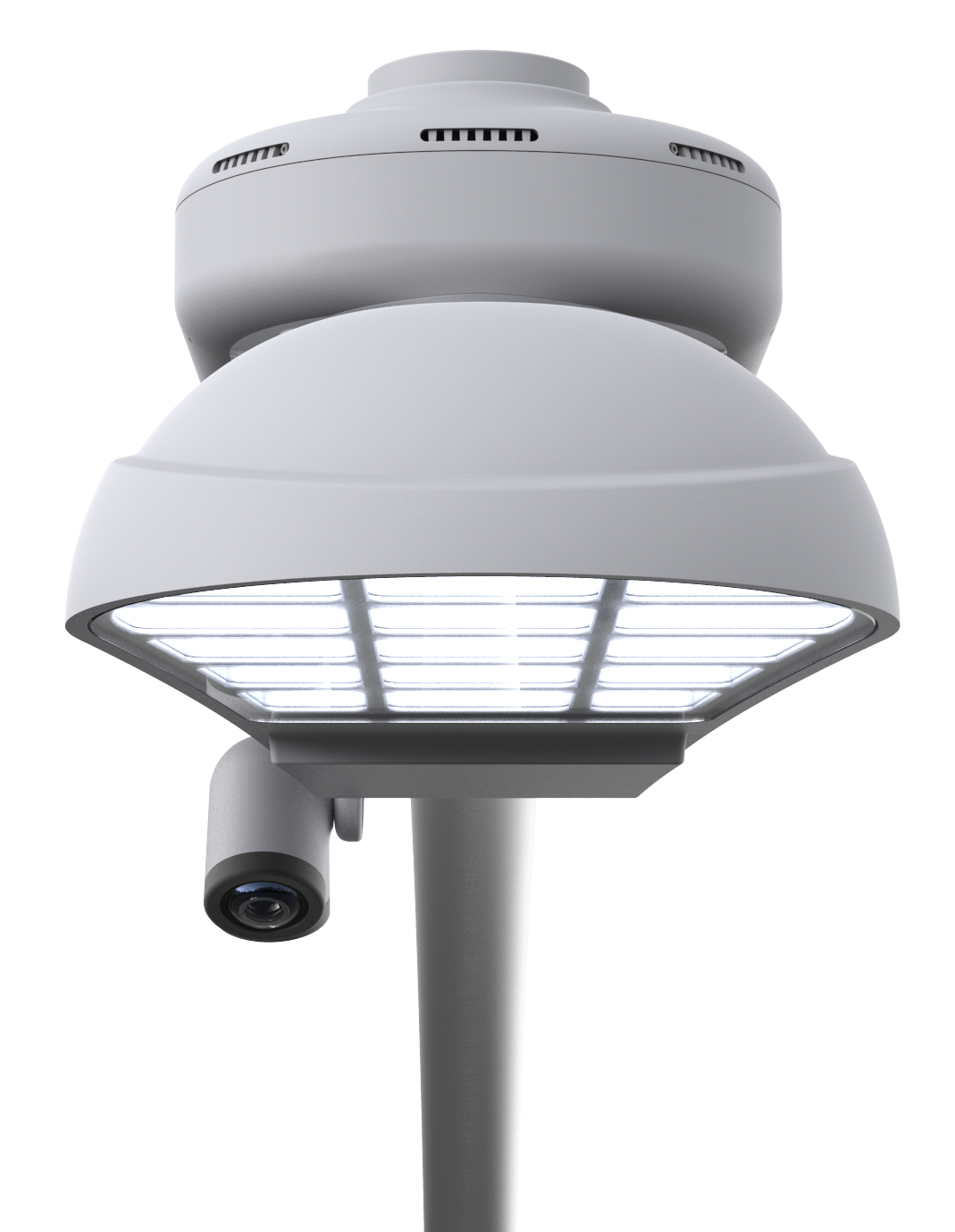

Ubicquia UbiHub APAI_Front Right Corner_pole_041122_0.png

Industry’s First Integrated
Smart City Platform

UbiHub AP/AI is the industry’s first smart city platform to integrate edge AI, Wi-Fi, microphones, cameras, and lighting control in one platform. Designed to help you improve public safety, manage traffic, and deliver public Wi-Fi with greater ease and less cost.

APAI_gif_2022_APAI webpage_102022.gif
One Platform, Multiple Uses

With the UbiHub AP/AI, many functions are integrated into one smart platform that is easier to deploy and monitor.

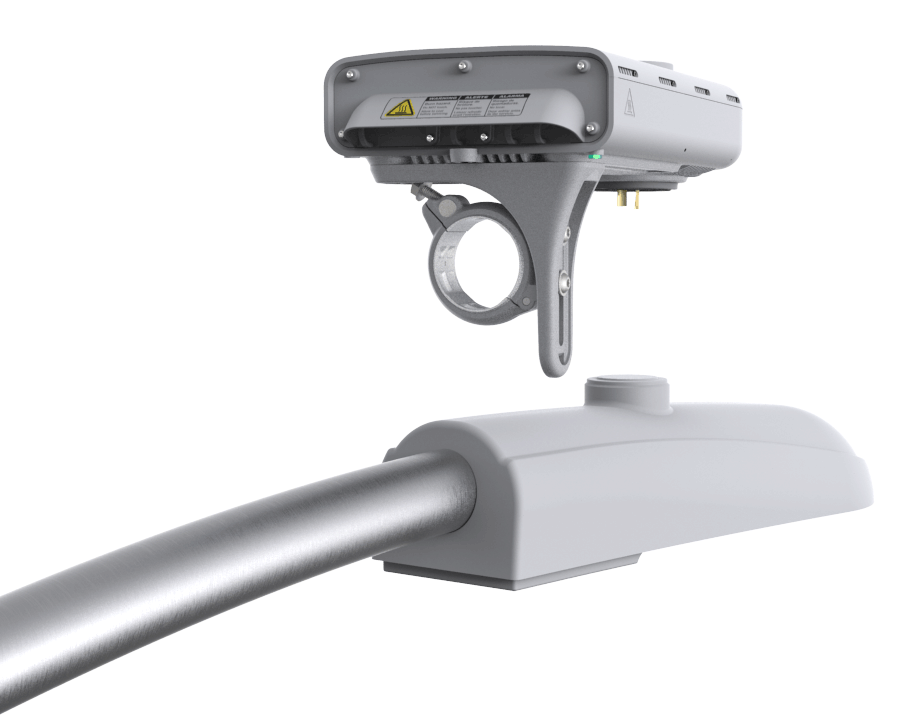

Installs in seconds
Plugs into photocell socket
Compatible with 360M Streetlights

AI that auto provisions
Uses homography to map area
Intersections, Crosswalks, etc.

Fully integrated Wi-Fi 6 AP
Industrial Qualcomm based access point
Mesh 4 units with 1 backhaul

One platform - across budgets
Connectivity, Public Safety, Traffic, Sustainability, etc.

Cut Costs

The cost to deploy smart streetlight components can add up for cities. With an all-in-one platform, costs can be cut by over 40% per streetlight, in addition to faster installation.

Source: Northeast Group, June 2022

A Better Way to Deploy Devices

You can bolt public safety cameras onto existing streetlights or construct new poles. Or you could go with something easier: simply plug them into a streetlight and save time and money.

Actionable Insights, Out of the Box

The data collected by the UbiHub AP/AI can be easily accessed through UbiVu, Ubicquia’s web-based analysis and cloud management tool. It also includes APIs designed for quick and simple sharing of data with third parties.

ICON connection.png

Connectivity

  • Captive portals
  • Connected users
  • Bandwidth consumption
  • White lists and black lists
ICON video.png

Video

  • Crime investigation
  • Vehicle+bike direction & speed
  • Entry & exit pedestrian counts
  • Parking space availability
ICON audio_microphone.png

Audio

  • Crowd noise level
  • Speeding cars
  • Construction noise
  • Gun shot detection
Manage Devices and Analyze Data in the Cloud

We’ve made it easy for you to manage UbiHub AP/AIs with our cloud-based management system, UbiVu. You can set up and monitor all devices, stream video, and access data – all in real-time. Regardless of how many applications you run on our platform, you can manage them with one cloud-based system.

UbiHub AP/AI Technical Details
UBIHUB APAI FEATURES UBIHUB AP/AI TECHNICAL SPECS
Cloud management Power Supply (auto-sensing): 120V to 480V (50/60Hz)
Mesh multiple access points with one backhaul Dual 4K cameras with 169° FoV
Multiple backhaul options (Ethernet, Fiber, and LTE) Dual 16-bit directional microphones
Integrated utility metering and light control Qualcomm Wi-Fi 6 tri-band chipset and up to 6Gbps bandwidth
PoE port for integration of 3rd party cameras and other sensors 12 integrated omni-directional antennas
AI processor for public safety and street analytics 2x5GHz and 1x2.4GHz 4x4 MU-MIMO
Open APIs for all data Size: 386mm x 208mm x 69mm
Neural AI engine Weight: 4.9kg
