Industry’s First Streetlight WiFi 6 Access Point

Expand your broadband capacity and coverage

Accelerating the deployment of high-speed public WiFi by leveraging the new Qualcomm WiFi 6 tri-band chipset, plus a third 5GHz channel allowing a single unit to mesh up to 4 units per ISP connection. Equipped with Ethernet, Fiber, LTE, or DOCSIS backhaul as well as a POE port for connecting and powering third-party network devices, UbiHub AP6 delivers 4x the speed with 40% greater coverage plus supports multiple public WiFi use cases.

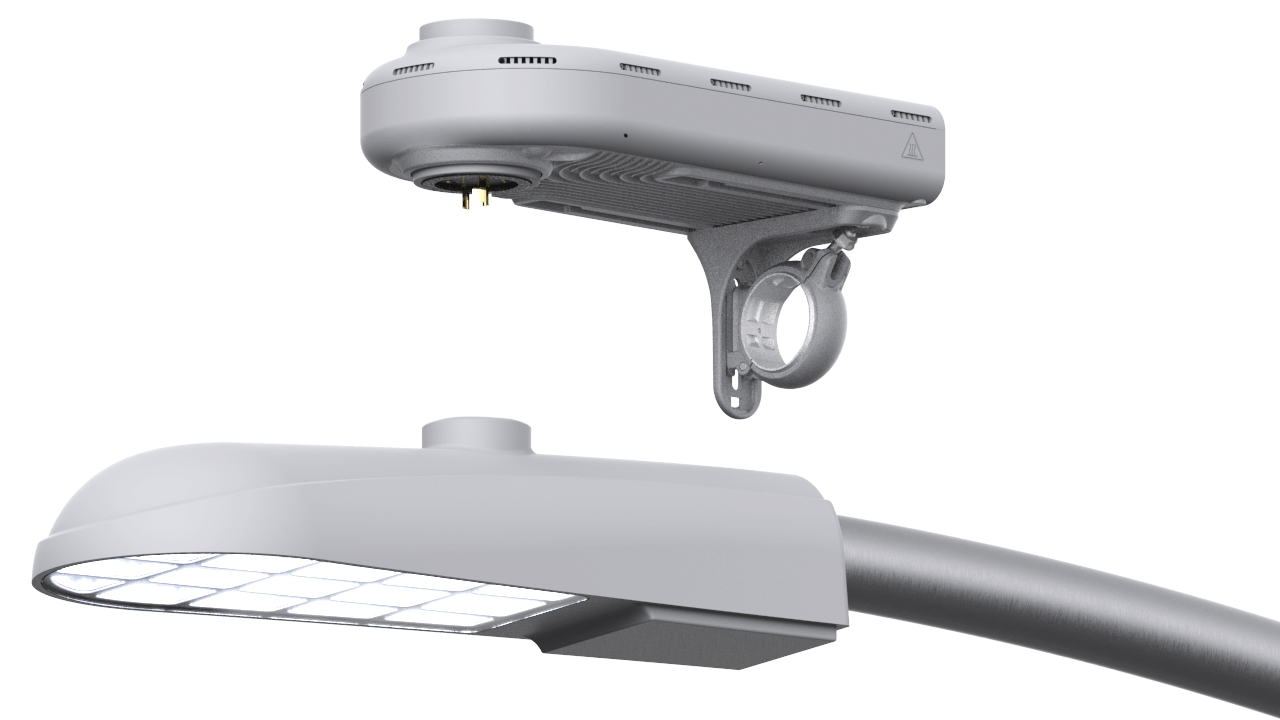

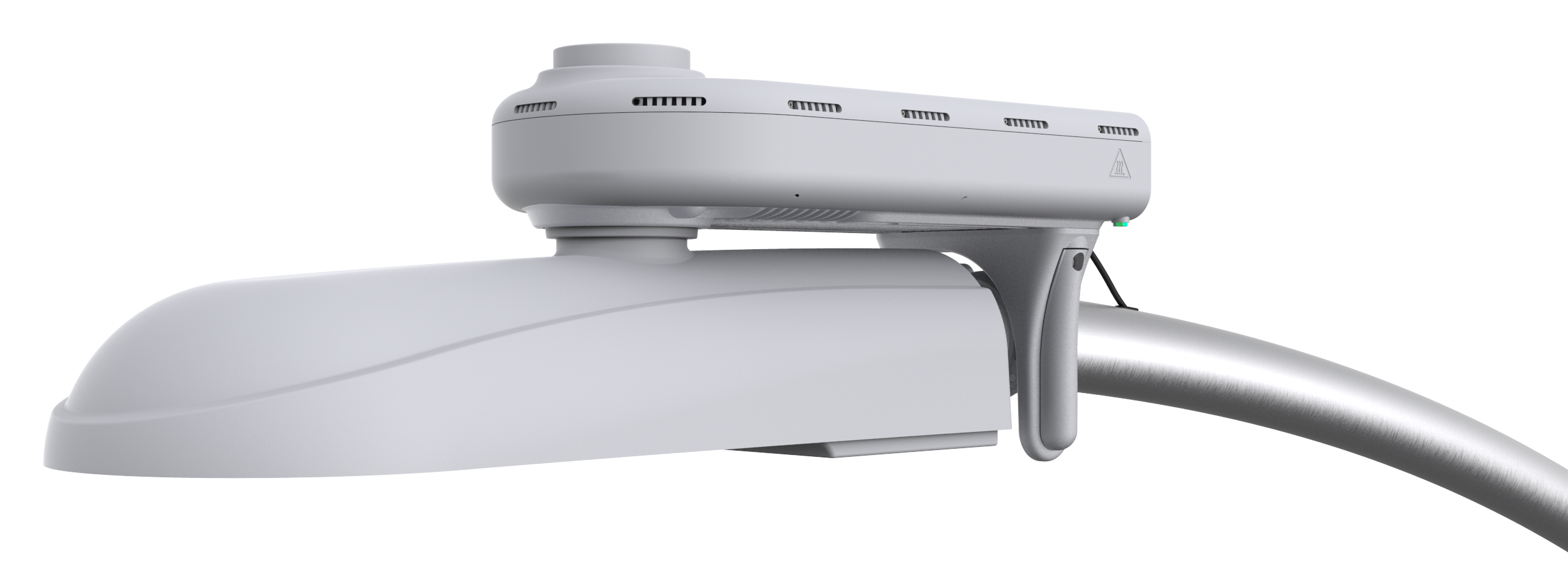

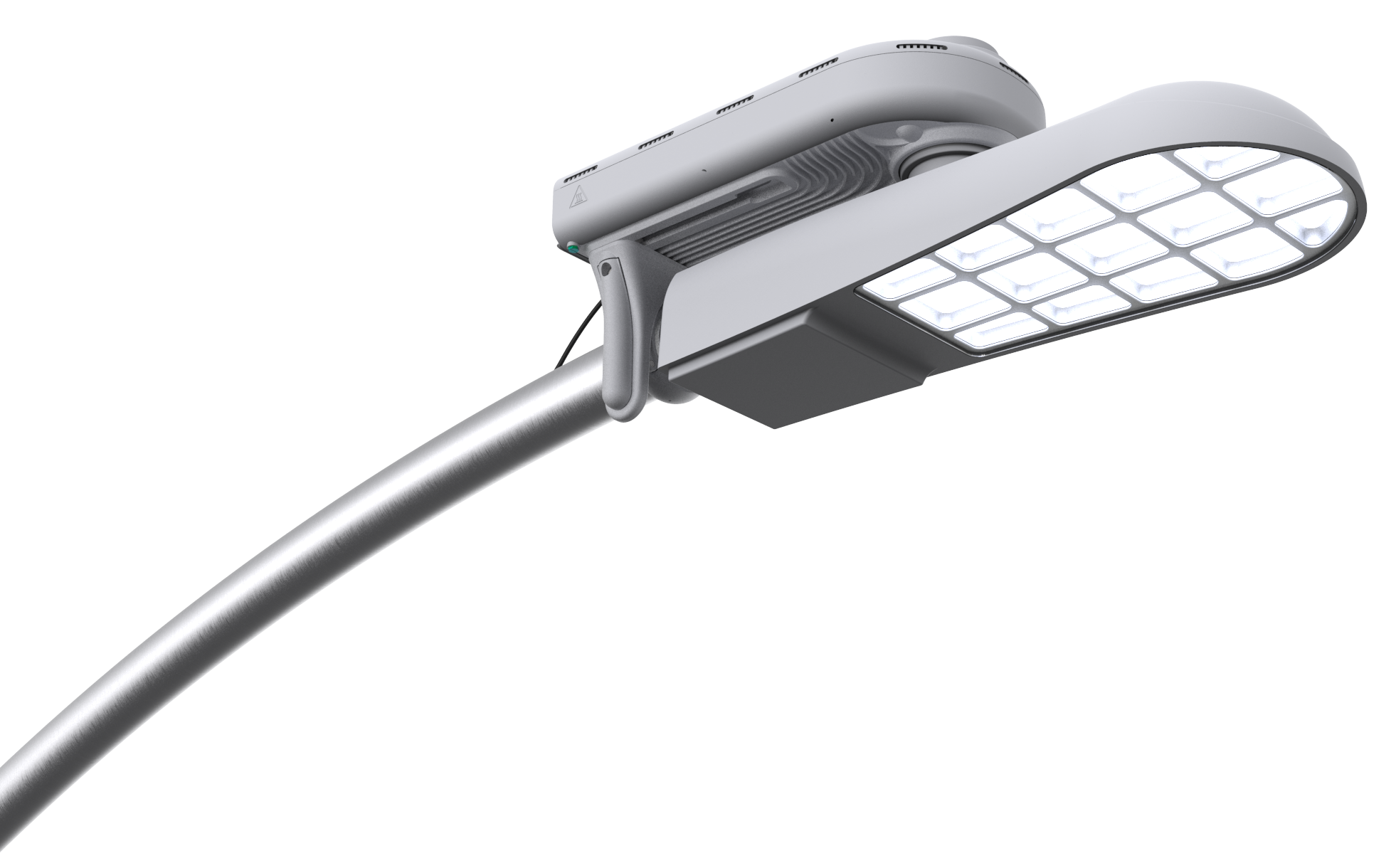

Integrates seamlessly with existing streetlight infrastructure

UbiHub AP6 provides multiple backhaul options and cloud-based management. Unlike other access points, UbiHub AP6 is barely visible from the street level, integrating seamlessly into the city environment. Installs typically in less than 15 minutes; creating connectivity to help bridge the digital divide and support.

test

Making cities smarter, safer and more connected

UbiHub access points are managed in the cloud by UbiVu, our integrated dashboard to manage and visualize your deployment. With OTA firmware and maintenance updates, reports and configuration set-up and remote troubleshooting, securely.

WiFi 6
Access Point

  • Efficiently manage up to 1,024 client connections
  • Tri-band (2x5GHz, 1x2.4GHz) 4x4 MU-MIMO
  • 12 integrated omni-directional antennas

WiFi
Mesh Network

  • Mesh up to 4 units per ISP connection
  • Dynamic load balancing of mesh network
  • Dedicated 5GHz radio for max mesh bandwidth

​​​​​Cloud Management

  • OTA updates and maintenance releases
  • UbiVu platform to manage and visualize assets
  • Advanced Wifi and lighting controls

Simplified Installation​​​​

  • Powered through the readily available NEMA socket
  • Install assist app
  • Less than 15-minute installation time
Key Technical Specifications
Dimensions : 386mm x 208mm x 69mm
Power Surge Detection : 20kV/10kA
Power Supply : 120V to 480V
Average Power Consumption : 55W
IP Rating   : IP65
Impact Rating : IK07
Ambient Temperature Range : -40C to +50C
Backhaul : Regular fiber SFP+, Ethernet CAT5e, LTE CAT4. DOCSIS 3.0
